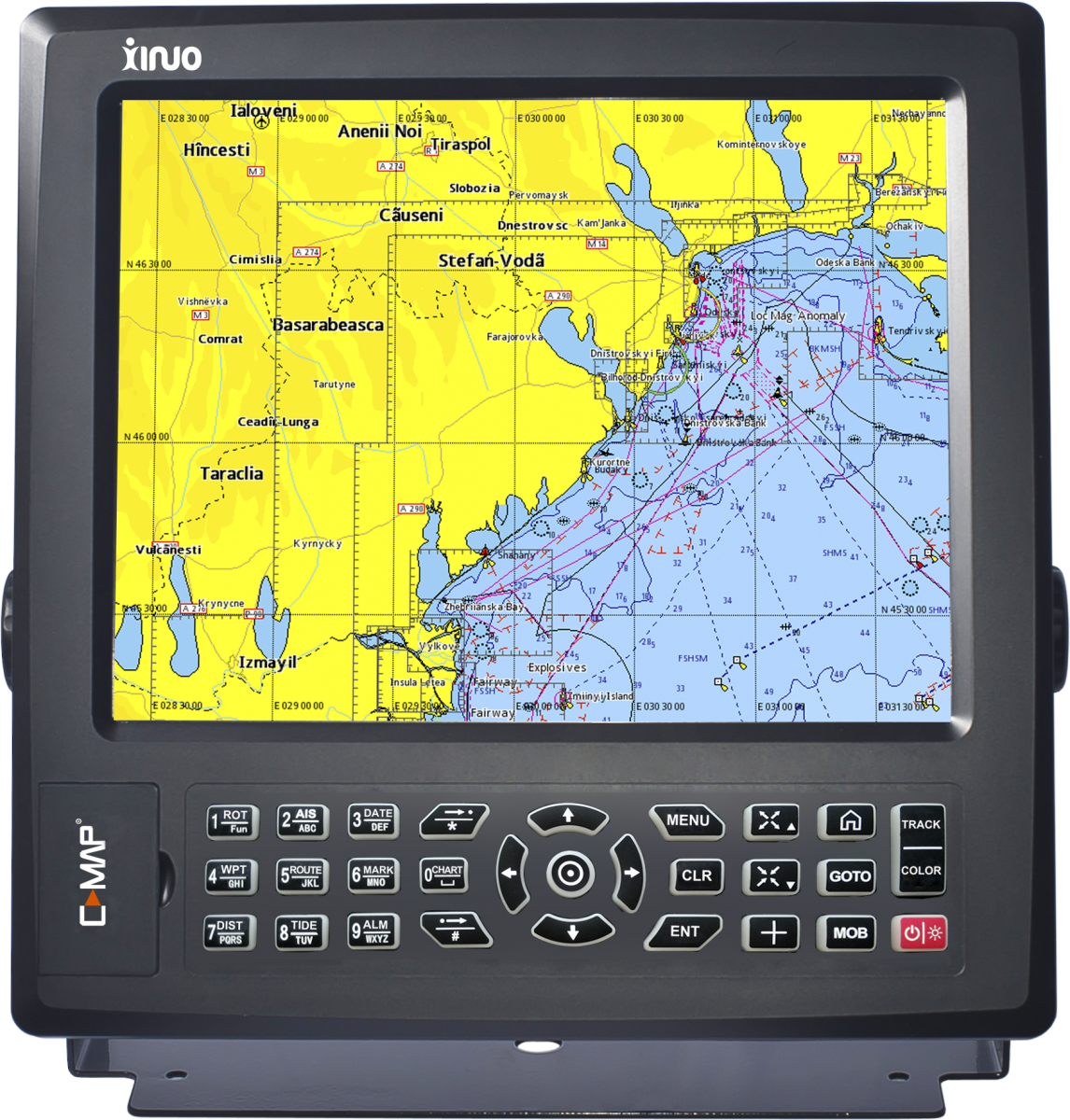

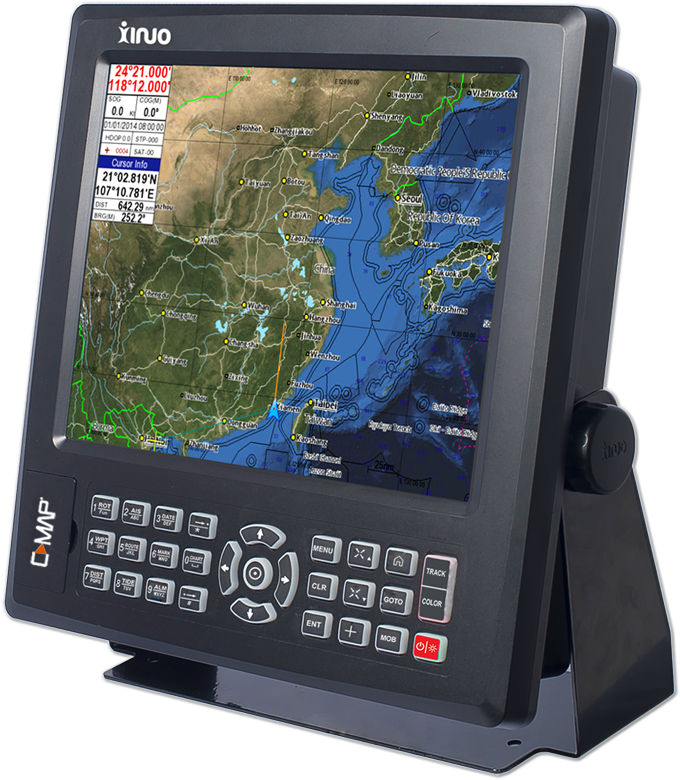

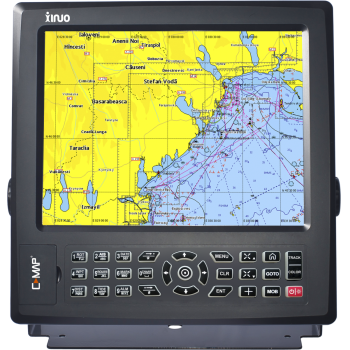

Xinuo HM-5912N AIS Chartplotter

The Xinuo XF-5912N AIS Chartplotter is an excellent choice if you are looking for a larger display and a very economical price. The value for money is only increased with the built in AIS Class B Transponder.

The XF-5912N has a 12.1" Bright, High Resolution (800x600) LCD Display and wide viewing angle. The charting is provided via C-MAP MAX Charts. The integrated AIS function displays the AIS targets dynamically on the chart.

The large capacity memory also has storage capacity for waypoints, markers and route planning. You are also able to save your data to an SD card.

The Xinuo XF-5912N has three independent output ports and input ports, each able to work on different Baud Rates.

Features

  • 12.1" Colour LCD Display
  • Built In AIS Transponder (VHF Antenna Required)
  • External GPS Antenna
  • 800x600 Resolution
  • 6 Display Modes
  • Memory: 10,000 Waypoints, 200 Routes, 10,000 Marks
  • C-MAP MAX Compatible
  • Interface: 1 x AIS Output Port, 2 x NMEA 0183 Outputs, 3 x NMEA0183 Inputs (Baud rate can be set independently)
  • Power: 12-36vDC
