Kongsberg EM2040 Compact

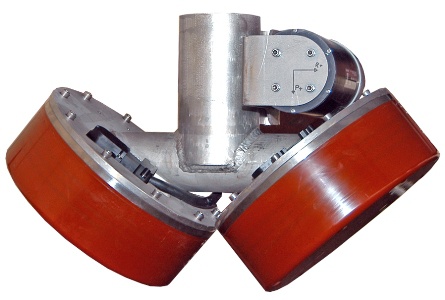

The EM 2040C (C for Compact) is a shallow water multibeam echo sounder based on the EM 2040 technology, an ideal tool for any high resolution mapping and inspection application. The receiver and transmitter are integrated in a common sonar head, with the same dimensions as its predecessor EM 3002.

The basic EM 2040C has Three units, a sonar head, a processing unit, and a workstation.

The compact The EM 2040C is a shallow water multibeam echo sounder based on the EM2040 technology, an ideal tool for any high resolution mapping and inspection application.

Features

  • High resolution
  • Wide frequency range
  • FM chirp
  • Roll and pitch stabilisation
  • Yaw stabilisation - for dual head
  • Nearfield focusing both on transmit and receive
  • Short pulse lengths, large bandwidth
  • Water column display

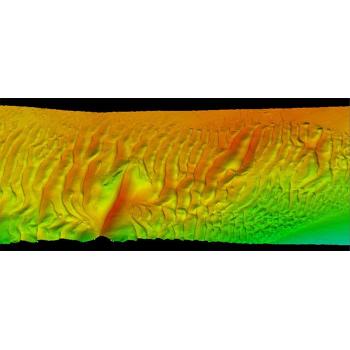

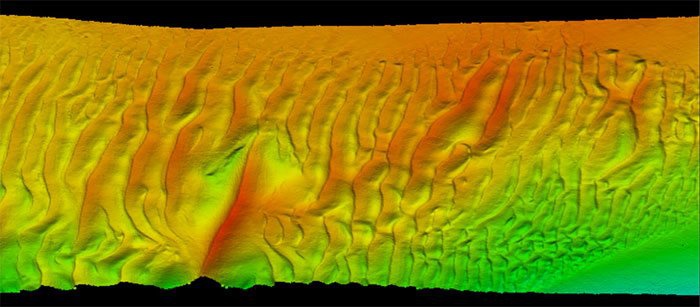

  • Seabed image
  • Depth rated to 50 m
  • Easy to install

Technical Specifications

  • Frequency range: 200 to 400 kHz in steps of 10 kHz
  • Beam width: 1 * 1 degree at 400 kHz
  • Max ping rate: 50 Hz
  • Swath coverage sector: Up to 130 degrees (single head) / 200 degrees (dual head)
  • Sounding patterns: Equiangular, equidistant and high density
  • No. of soundings per ping: 400 (single head, single swath)
  • 800 (single head, dual swath)
  • 1600 (dual head, dual swath)
  • Roll stabilised beams: +/-15 degrees
  • Yaw stabilised beams: +/-10 degrees (Dual head)
