Airmar B260

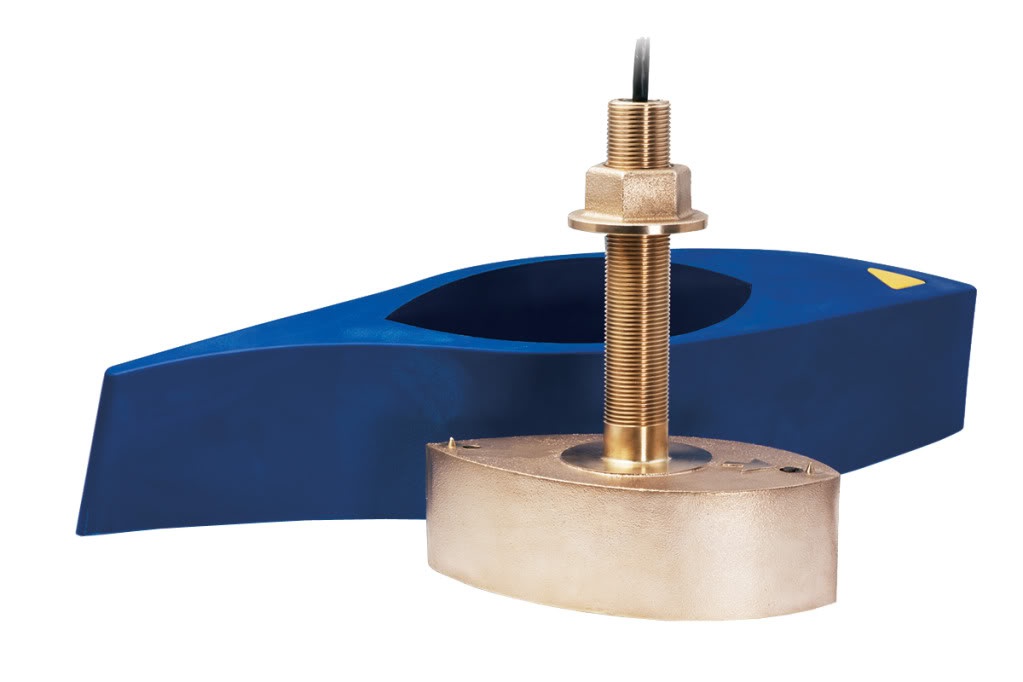

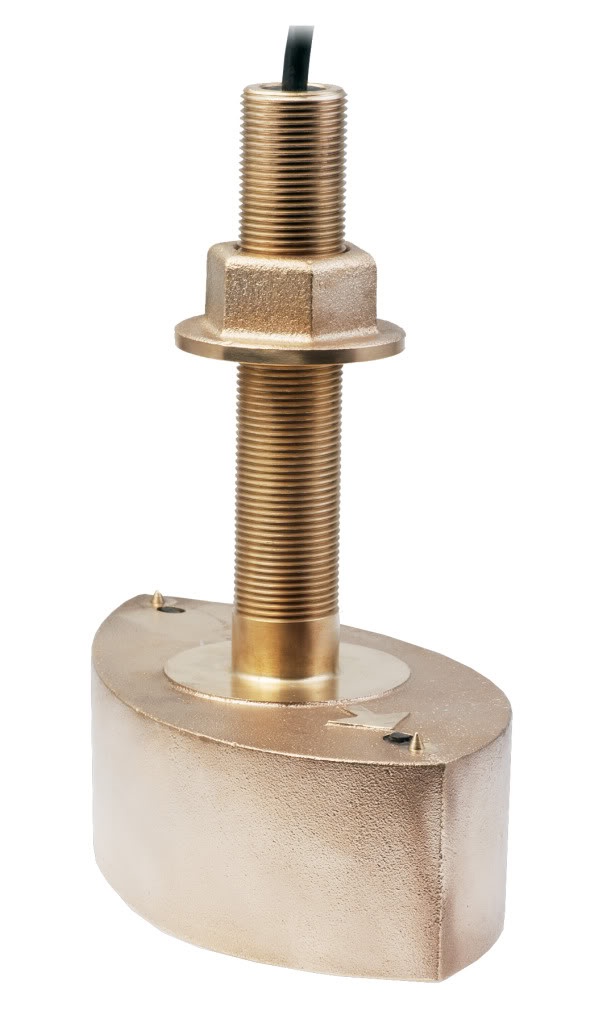

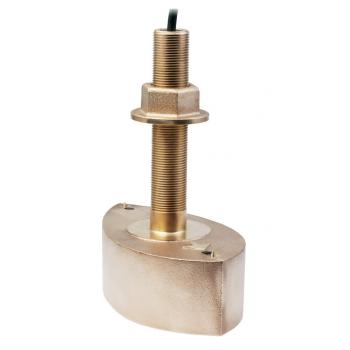

The B260 is Airmar's best performing 1 kW bronze thru-hull stem for 300w to 1 kW echosounders. Its construction utilizes separate 50 kHz and 200 kHz elements for unparalled deep water performance and unmatched bottom and water column detail. The B260's narrow beam provides crisp image detail especially suited for fishing shelves, intricate bottom structures and wrecks.
Applications
- Sport fishing boats above 26' (8m)
- Small to midsize commercial fishing boats
Specification
- Frequency: Dual Frequency 50kHz and 200kHz
- Beam Width: 19°@50kHz 6°@200kHz
- Rated RMS Power: 1kW
- Weight: 7.3kg (16lb.)
- Hole diameter for Installation: 26mm (1")
- Hull Deadrise Angle: Up to 28° with fairing
Notes:
- Includes temperature sensor

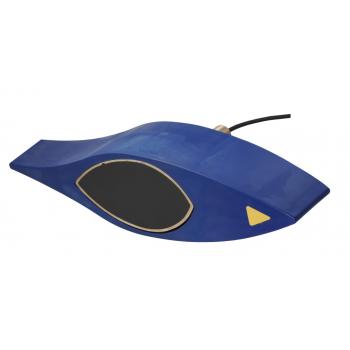

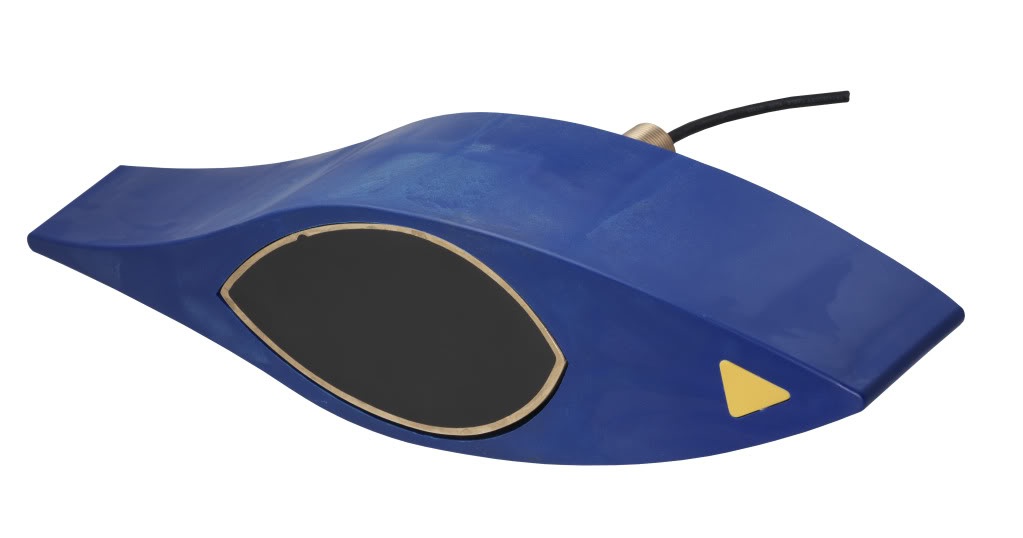

- Included high performance fairing reduces drag and directs smooth water over the transducer's face for excellent echosounder performance at all speeds
