Airmar B45

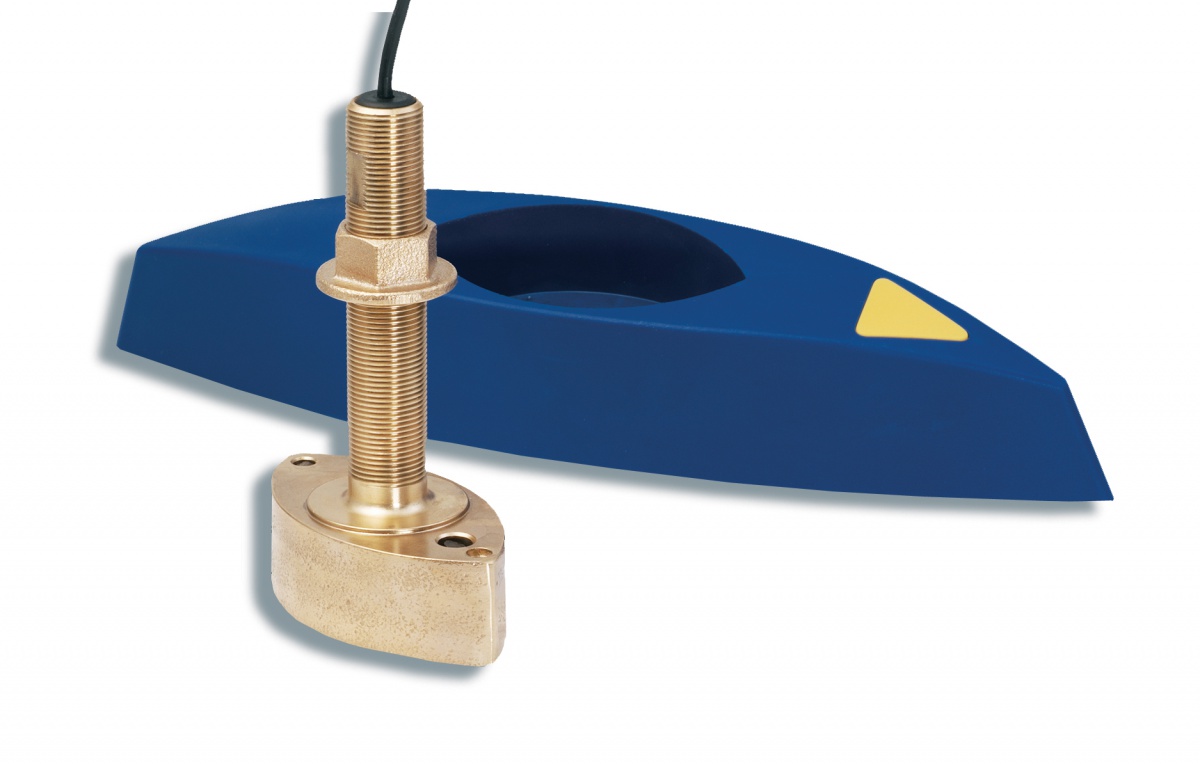

The B45 is Airmar's smallest and most economical, dual-frequency, bronze, thru-hull, stem transducer. Its streamlined shape deflects aerated water from the transducer's face for strong return echoes and clear display images. Airmar's High-performance fairings are recommended for all installations to obtain the best possible results.
Applications
- Planing Hull Powerboats
- Cruising Sailboats
Features
- Good target detail in shallow water at 200 kHz and good deep water bottom tracking at 50 kHz
- Included high performance fairing reduces drag and directs smooth water over the transducer's face for excellent echosounder performance at all speeds
- Fairing vertically orients sound beams for stronger return echoes resulting in optimal sounder performance
- Airmar's B45 fairings are easy to cut and will not swell or rot
Specification
- Frequency: Dual frequency 50kHz and 200kHz
- Beam Width: 45° @ 50kHz, 12° @ 200kHz
- Rated RMS Power: 600W
- Weight: 1.0kg (2.2lb.)
- Hull Deadrise Angle: Up to 28° with fairing
- Hole Diameter for Installation: 22m (7/8")
