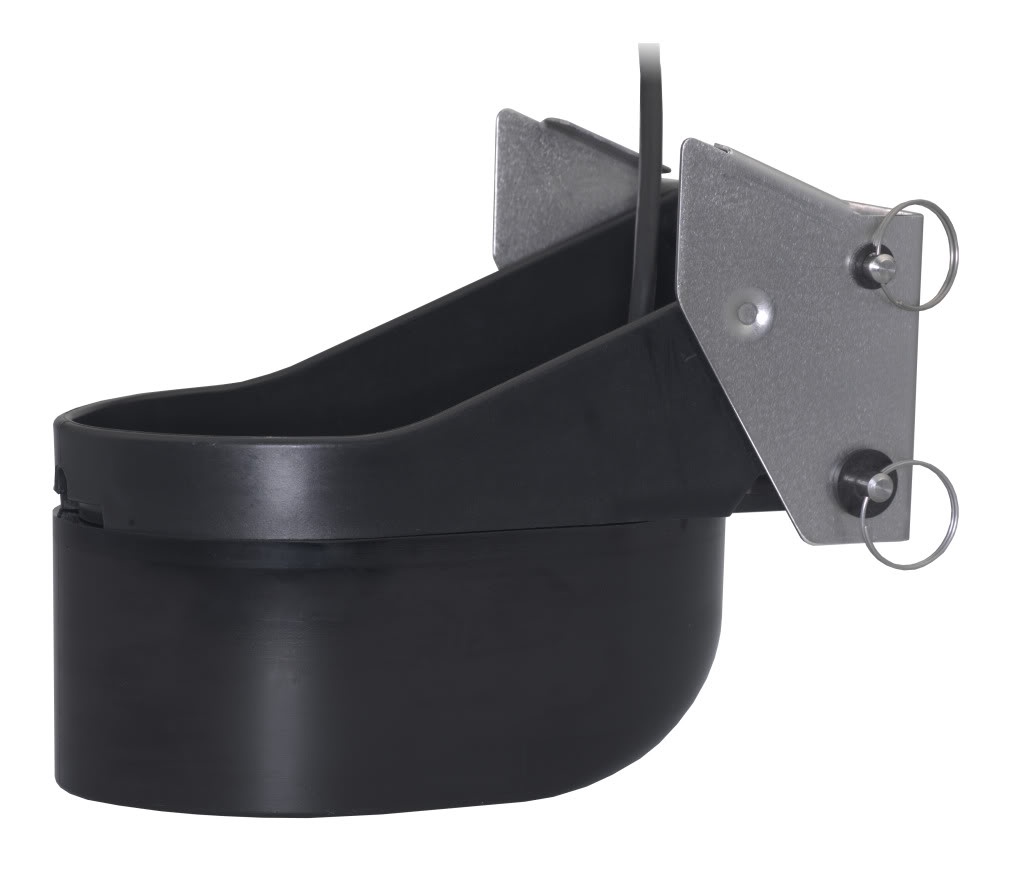

Airmar TM260
Now you can have the legendary performance of the Arimar B260 from an Transom mount transducer with the TM260. This top of the line broadband transom mount brings crystal clear imaging to any fishfinder.
The large 200kHz element and seven element 50kHz array are excellent for bait and game fish seperation along with detecting ground fish holding tight to the bottom.
The TM260's high performance mounting bracket is easy to isntall and has a streamlined shape that delivers high speed performance at up to 30 knots (35 mph)
Applications
- Blue Water trolling using 50kKz
- Deep water bottom and wreck fishing up to 800m (2,625ft)
Features
- Top of the line narrow beam transom-mount
- Designed for bottom fishing
- Wide 19 degree beam at 50kHz
- Narrow 6 degree beam at 200kHz
- Interfaces to any 600w or 1kW sounder
- Depth and fast response water temperature sesnor
- Kick up assembly locks in the 'up' position and will not damage the transom
- Accomodates transom angles between 3 and 21 degrees
- Urethane housing
- Boat Size: Up to 12m (40ft)
Specification
- Frequency: Dual frequency 50kHz and 200kHz
- Beam Width: 19° @ 50kHz, 6° @ 200kHz
- Rated RMS Power: 1kW
- Weight: 4kg (8.9lbs)
-Hull Deadrise Angle: Up to 28°
