Simrad 38/200Khz Combi W

Recommended For:

1. Coastal Fishing
2. Scientific Research
3. Commercial Fishing
4. Workboats

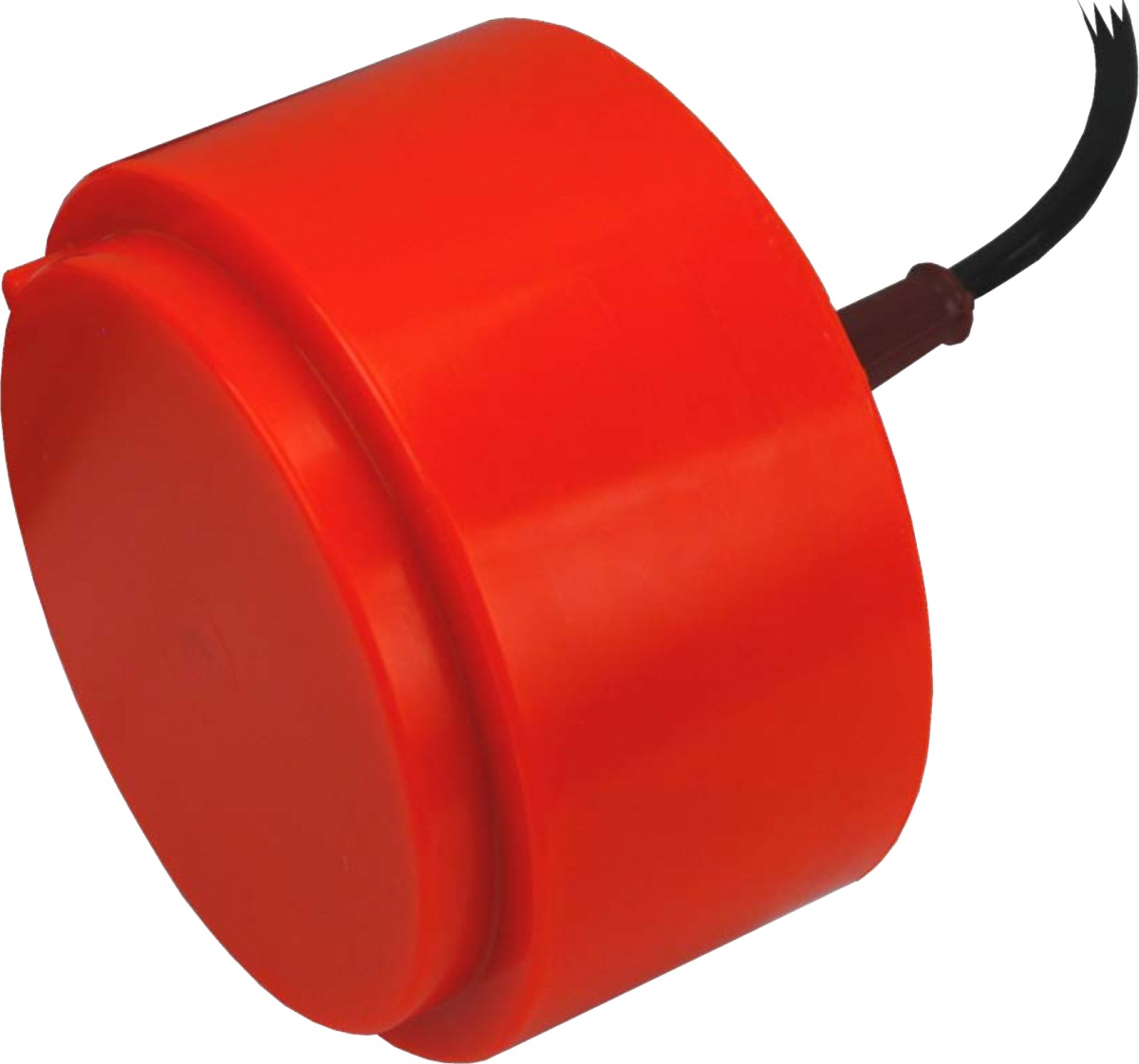

Simrad 38/200Khz Combi W

The Simrad 38/200 Combi W is a dual frequency transducer (38 and 200 kHz), and both frequencies operate with wide beams (31°). This makes the transducer perfect for shallow water fish detection using the 200 kHz frequency, and excellent for bottom discrimination from shallow depths and down to several hundred meters using both frequencies. This is currently the only 200 kHz wide beam (31°) transducer available on the market. It has been made possible using the latest Simrad Composite Transducer Technology. This unique technology also ensures a transducer efficiency above 70%.

Applications:

• Fishery echo sounders
• Fishery Research echo sounders

Key technical specifications:

• Frequency: 38 and 200 kHz
• Beamwidth: 50 kHz longitudinal: 31 degrees, 50 kHz transverse: 31 degrees, 200 kHz longitudinal: 31 degrees, 200 kHz transverse: 31 degrees
• Maximum pulse power input: 38 kHz: 400 W, 200 kHz: 250 W
• Maximum continuous power input: 38 kHz: 5 W, 200 kHz: 4 W>
• Maximum transducer depth: 20 m
• Cable length: 15 m
• Weight with cable: 5 kg
• Diameter: 120 mm
