Simrad 38/200kHz Combi C

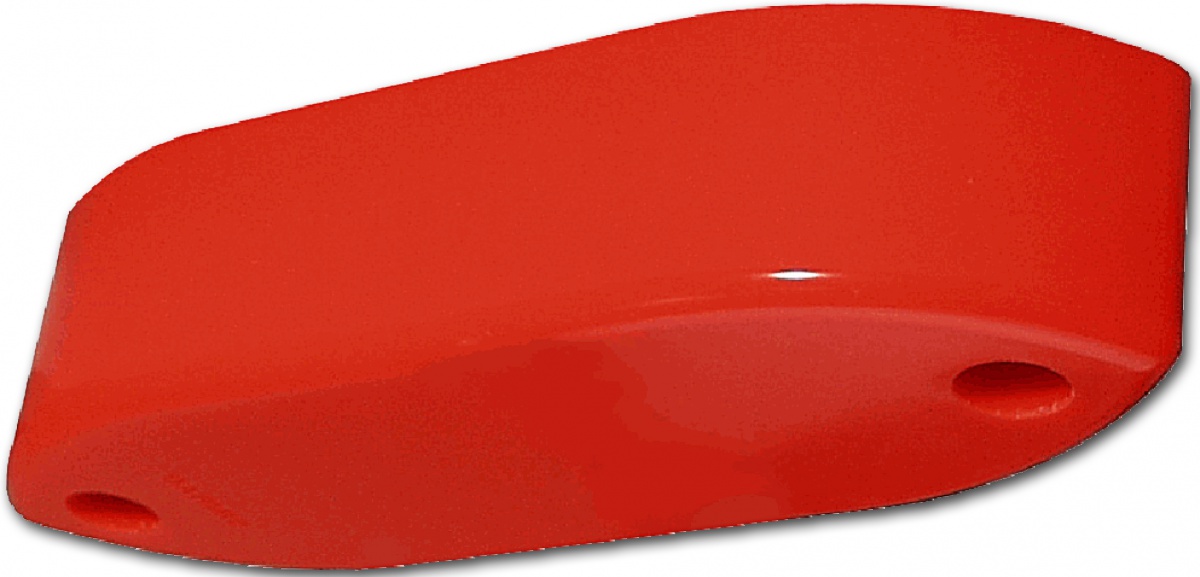

The Simrad 38/200 Combi C transducer combines two transducers and one temperature sensor in a single housing. It is designed with a streamlined shape for hull mounting on small vessels.
Applications:
Key technical specifications:
- Frequency: 38 and 200 kHz
- Beamwidth: 50 kHz longitudinal: 13 degrees, 50 kHz transverse: 21 degrees ; 200 kHz longitudinal: 7 degrees, 200 kHz transverse: 7 degrees
- Maximum pulse power input: 1000W
- Maximum continuous input: 10 W
- Maximum transducer depth: 20 m
- Cable length: 10 m
- Weight with cable: 6.5 kg
- Length: 430 mm
- Width: 138 mm
