Simrad 50/200kHz Combi D

Recommended For:

1. Coastal Fishing
2. Commercial Fishing
3. Workboats

Simrad 50/200kHz Combi D

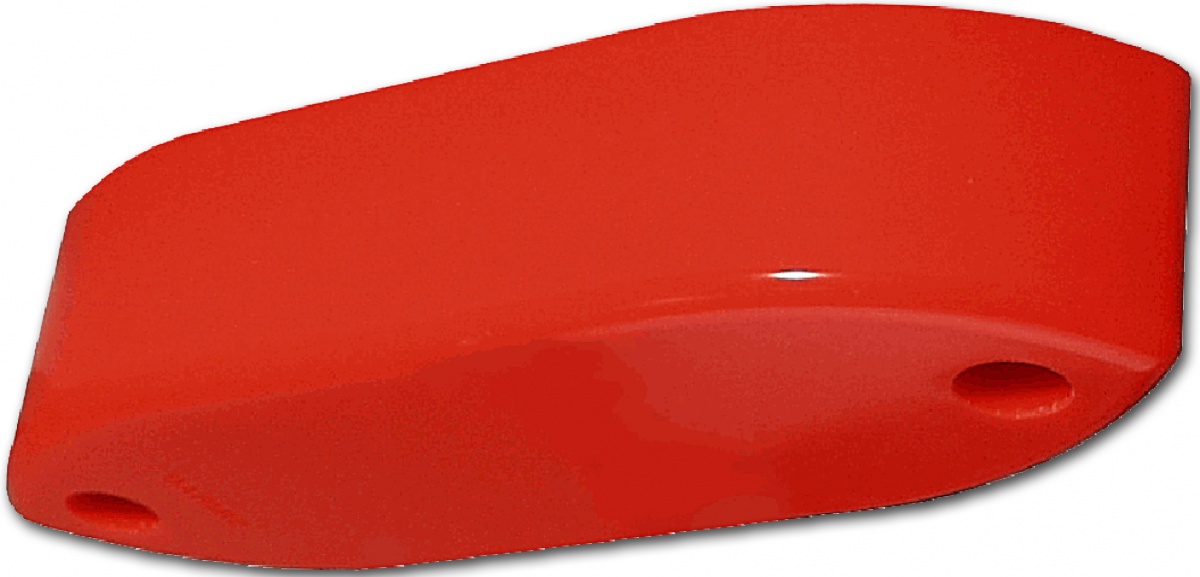

The Simrad 50/200 Combi D transducer combines two transducers and one temperature sensor in a single housing. It is designed with a streamlined shape for hull mounting on small vessels.

Applications: - Fishery echo sounders - Single beam hydrographic echo sounders - Navigation echo sounders

Key technical specifications:

• Frequency: 50 and 200 kHz
• Beamwidth: 50 kHz longitudinal: 10 degrees, 50 kHz transverse: 16 degrees, 200 kHz longitudinal: 7 degrees , 200 kHz transverse: 7 degrees
• Maximum pulse power input: 1000W
• Maximum continuous input: 10 W
• Maximum transducer depth: 20 m
• Cable length: 15 m
• Weight with cable: 8 kg
• Length: 403 mm
• Width: 138mm
• Height, body: 92 mm
