Simrad 50/200 kHz Combi C

Recommended For:

1. Coastal Fishing
2. Commercial Fishing
3. Workboats

Simrad 50/200 kHz Combi C

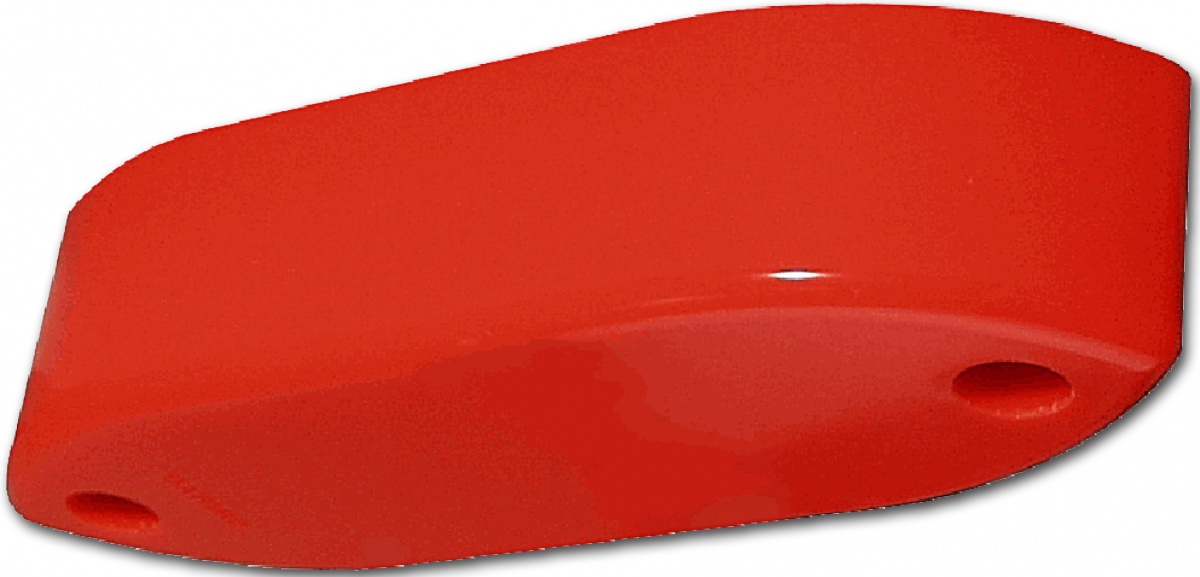

The Simrad 50/200 Combi C transducer combines two transducers and one temperature sensor in a single housing. It is designed with a streamlined shape for hull mounting on small vessels.

Applications:

• Fishery echo sounders

Key technical specifications:

• Frequency: 50 and 200 kHz
• Beamwidth: 50 kHz longitudinal: 10 degrees,50 kHz transverse: 26 degrees ; 200 kHz longitudinal: 7 degrees, 200 kHz transverse: 7 degrees
• Maximum pulse power input: 1000W
• Maximum continuous input: 10 W
• Maximum transducer depth: 20 m
