Hondex HE-7300-WB-Bo

Recommended For:

  1. Workboats
  2. Commercial Fishing
  3. Coastal Fishing

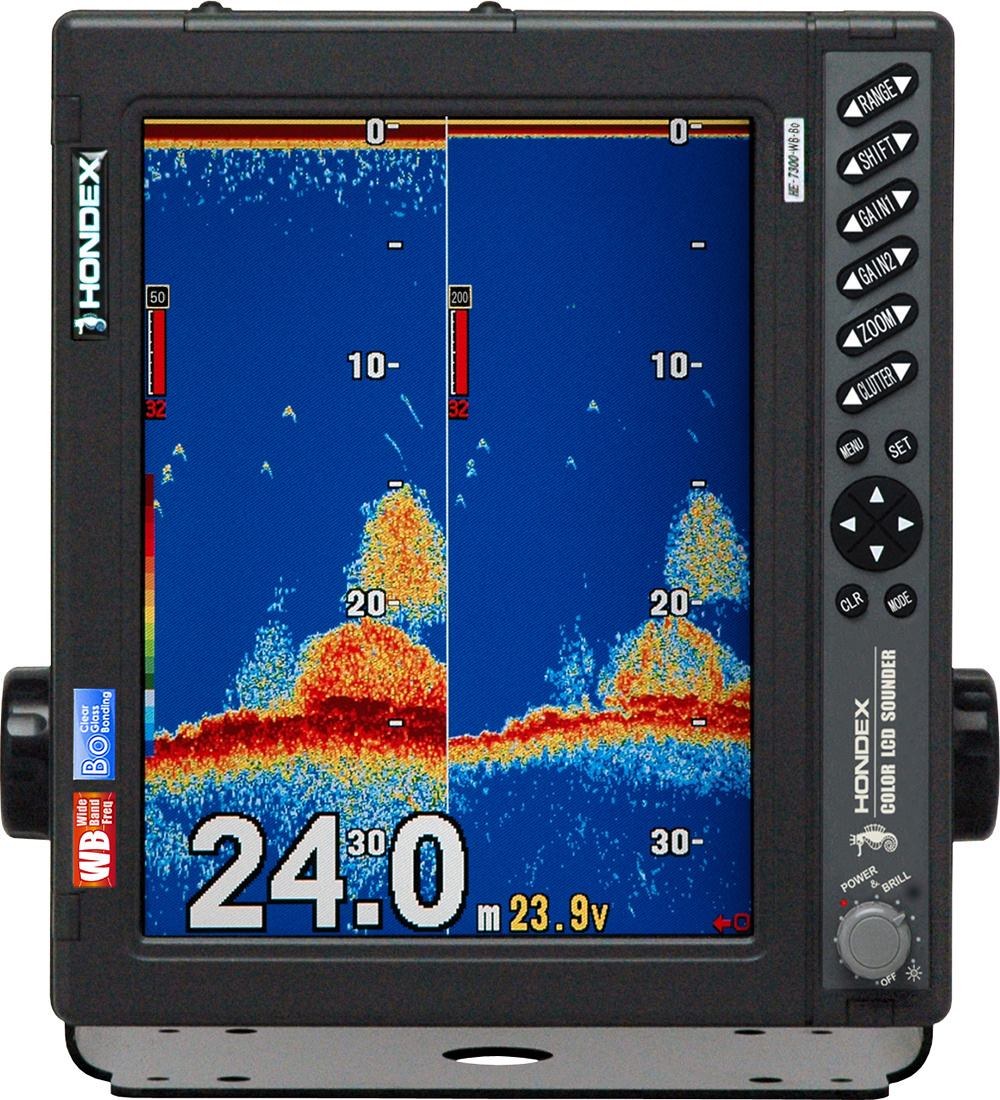

Hondex HE-7300-WB-Bo 10.4" Echosounder

The Hondex HE-7300-WB-Bo provides the performance and reliability we have come to expect from Hondex with the increased functionality of Wide Beam Transducer compatibility.  As a variable frequency echosounder the HE-7300-WB-Bo can be matched to an existing transducer from 28 to 220kHz and an output power of 1 to 5kW, making it ideal for retrofit as well as new installations.With a new bonded 10.4" XGA TFT screen the HE-7300-WB-Bo benefits from increased clarity and viewing, expecially in bright sunlight conditions.Transducer compatibility is further enhanced with the addition of the wide beam transducers from Hondex.  The HE-7300-WB-Bo, being specifically designed to pair with the Low (38-70kHz)/High(130-220kHz) and 5kW Low (38-70kHz) Wide beam transducers.

Specifications

Display

10.4” Colour TFT LCD

No. of Pixels

640x480

Operating Voltage

11-30V DC

Power Consumption

24W

Display Style

Portrait, Landscape

Weight

Approx. 4kg

Output power

1 to 5kW

Frequency

Dual Frequency from 28kHz to 220kHz

Depth Range

0 to 2,000 Meters/Fathoms

0 to 6,000 Feet

Max Shift Range

2,000 to 4,000 Meters/Fathoms

6,000 to 8,000 Feet

Auto Range / Auto Shift

Off / Range /Shift

Auto Gain

Off / Low / High

A-Mode

Off / On

Fish Alarm

Off / Small / Large

Water Temp Alarm

Off / In Range / Out Range

(optional water temp sensor required)

Depth Alarm

Off / In Range / Out range

Expansion Mode

Off / BL / Auto / Manual

Expansion Rate

x2, x4, x8

Background Colour

4 Colours

Colour Configuration

5 Patterns

Depth Unit

Meters / Feet / Fathoms

Depth Readout

S / M / L

Scale Line

Off / On

Super Range

Off / On

Clean Echo

Off / L / M / H

STC

L / M /H

TX Power

Off / Low / High

NMEA Power

Depth (DBT)

Water Temp (MTW)
