Hondex HE-775-Di

   Buy Online

Recommended For:

  1. Workboats
  2. Recreation
  3. Commercial Fishing
  4. Coastal Fishing

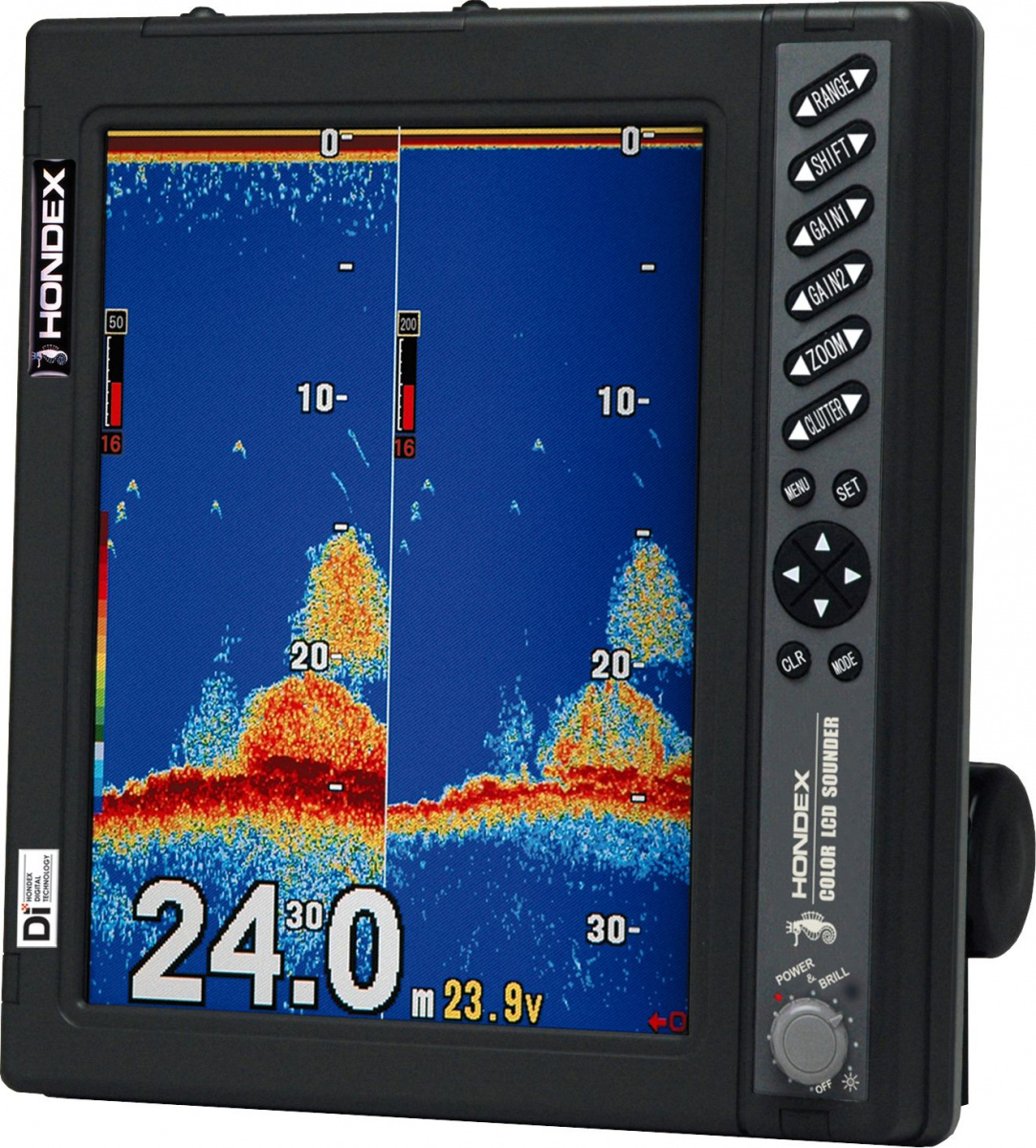

Hondex HE-775-DI 10" 50/200kHz Echosounder

Designed for professional fishermen, the HE-775-DI offers a cost-effective solution for skippers requiring a high performance, high definition screen and reliability at an affordable price. The DI series introduces the latest development in echosounder technology, direct digital conversion. This allows optimized filtering even for weak signals as well as deeper detection for deep water and higher resolution image for shallow water.

The HE-775-DI also takes advantage of the versatile picture display which allows for horizontal or vertical mounting of the unit. The HE-775-DI features a simple to operate menu system; controls for Range, Clutter and Gain are found next to the main display for easy access and amendment.

HE-775-DI are ideal for retrofit installations as they can be connected to an existing 50/200kHz transducer with power outputs of 1 to 3kW. For new installations our Hondex tranducer range is recommended.

Key Features

  1. Dual Display for the same frequency: Split the screen to view different gain settings of a single frequency image on either side.
  2. Whole Display Gain adjustment: Gain adjustment is applied to the whole of the image on the screen.
  3. Variable Frequency: The Di series is designed to connect with your existing transducer.
  4. Multiple Display Options: The picture can be presented in Landscape or Portrait mode on the high quality 10.4 inch colour LCD screen.
  5. Depth Range: 5 to 2,000 Meters/Fathoms/Brazas, 15 to 6,000 Feet.
  6. Max Shift Range: 2,000 to 4,000 Meters/Fathoms/Brazas, 6,000 to 8,000 Feet
  7. Auto range/Auto Shift: Off / Range / Shift
  8. Auto Gain: Off / Low / High
  9. Fish Alarm: Off / Small / Large
  10. Depth Alarm: Off / In range / Outside Range
  11. Expansion Mode: Off / Bottom Lock / Auto / Manual
  12. Expansion rate: x2, x4, x8
  13. Background Colour: 4 Colours
  14. Colour Configuration: 5 patterns
  15. Depth Unit: Meters / Feet / Fathoms / Brazas
  16. Scale Line: Off / On
  17. Clean Echo: Off / Low / Medium / High
  18. Water Temperature: Optional Sensor Required

In the box

HE-775-DI, mounting bracket and knobs, power cable, NMEA data plug
