Icom IC-M423GE Fixed DSC VHF

Recommended For:

1. Workboats
2. Recreation
3. Coastal Fishing

Downloads:

• IC-M423GE.pdf

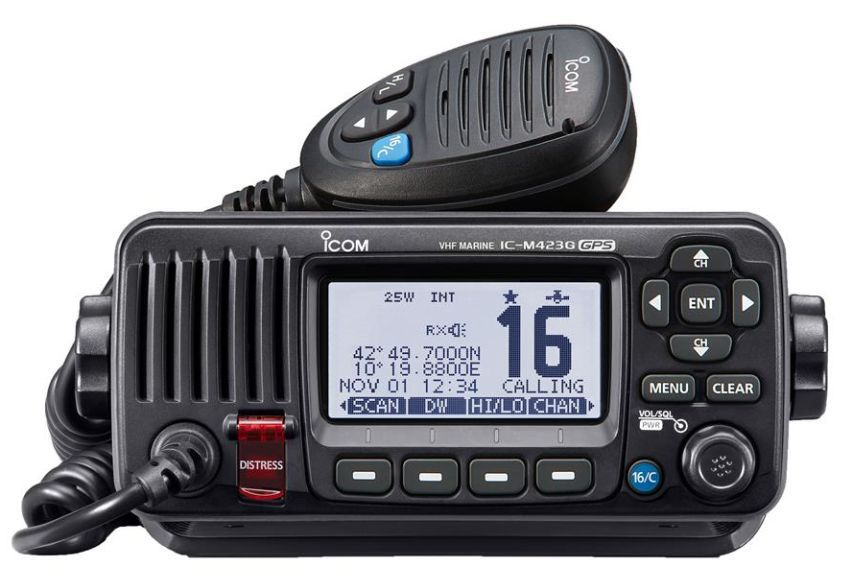

IC-M423GE Fixed DSC VHF

The IC-M423GE is ideal for customers who are looking for a compact radio for their boat with advanced functions and dual station control. The radio features built-in active noise cancelling technology that provides superb audio performance. The optional COMMANDMIC allows you to control all the functions of the IC-M423GE as well as being able to be used as an intercom with the radio.

Intuitive User Interface and White Backlit LCD and Keypad

Incorporating Icom’s common Marine Family User Interface, the IC-M423GE has been designed for simple, intuitive operation. A rotary selector and directional keypad provide quick and easy access to the intended functions. The high contrast white backlit LCD and laser-cut keypad match well with modern boat designs.

Active Noise Cancelling Technology

The built-in active noise cancelling technology provides superb performance. It reduces background noise up to 90% in the received signal and 30% in the transmits signal.

10 W Loud Audio, Public Address and Foghorn

The IC-M423GE has a built-in 10 W amplifier that increases the audio output to an external PA speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, the foghorn can also be emitted from the external PA speaker.

Built-in Class D DSC

The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel.

DSC functions include:

Distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

Built-in GPS Receiver

The built-in GPS receiver shows your current position, date/time and can be used for DSC calls.

AIS Target Call

When connected to an optional MA-510TR/MA-500TR Class B AIS transponder, the AIS target call function allows you to make an individual DSC call without having to manually input an MMSI number.

Additional Features

• Comes as standard with HM-205B/SW remote control speaker-microphone
• NMEA 0183 connectivity
• AquaQuake™ draining function
• IPX7 waterproof protection
• Dual/tri-watch function
• Priority and normal scan
• Black and super white versions are available.
• Supports 4-digit channels
• Meets ITU-R M493-14 specifications
• Comes complete with a simple plastic flush mount kit.

Options

White Backlit HM-195GB/GW COMMANDMIC™

The optional white backlit COMMANDMIC allows you to use the IC-M423GE from a separate cabin or tower. All functions of the IC-M423GE can be controlled from the COMMANDMIC. The HM-195GB/GW COMMANDMIC can also be used as an intercom with the IC-M423GE.

Stainless steel flush mount kits are available as an option.
