Quick MC2 X AC Series
Recommended For:
- Workboats
- Scientific Research
- Commercial Fishing

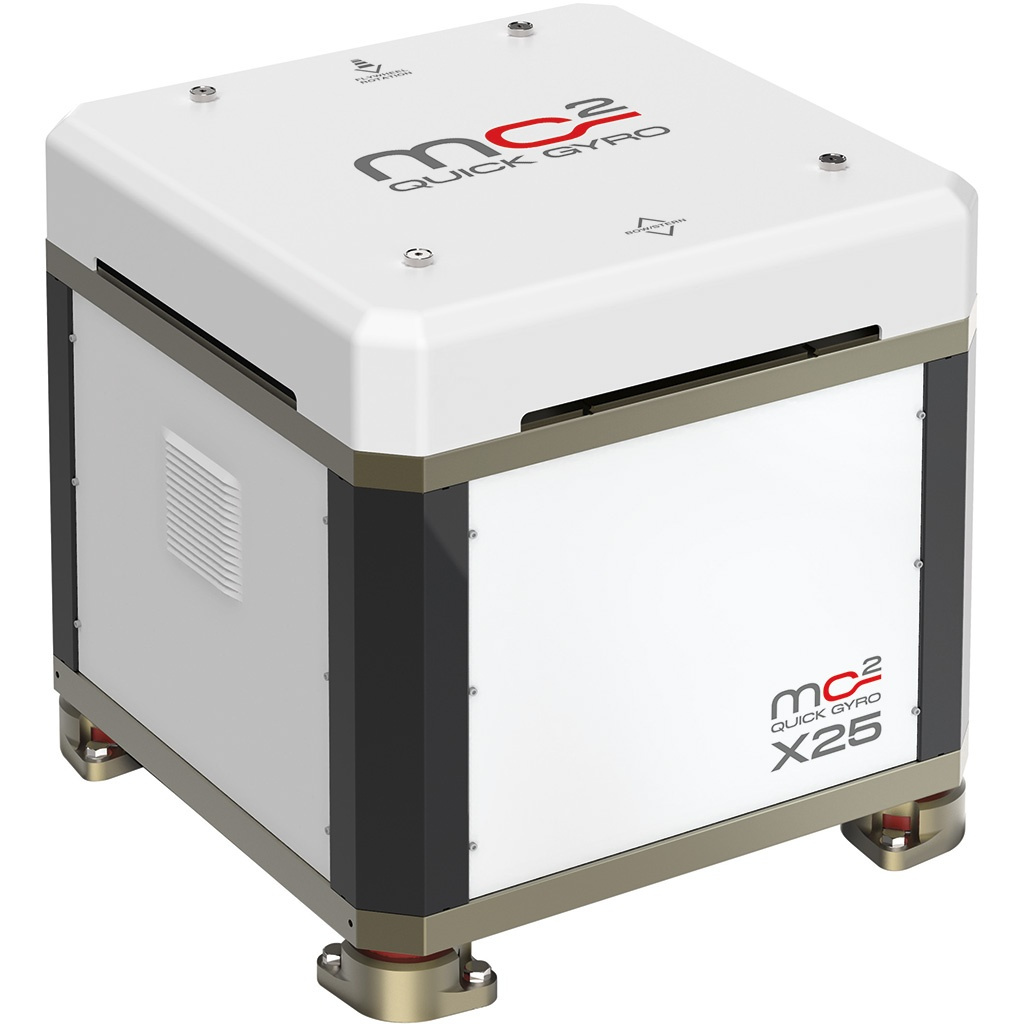

The MC2 Quick Gyro gyroscope is compact and structured to be easily installed on any type of boat. The system is supplied ready for installation with mechanical anchoring and connection to the power supply. These features also make it ideal for refitting.

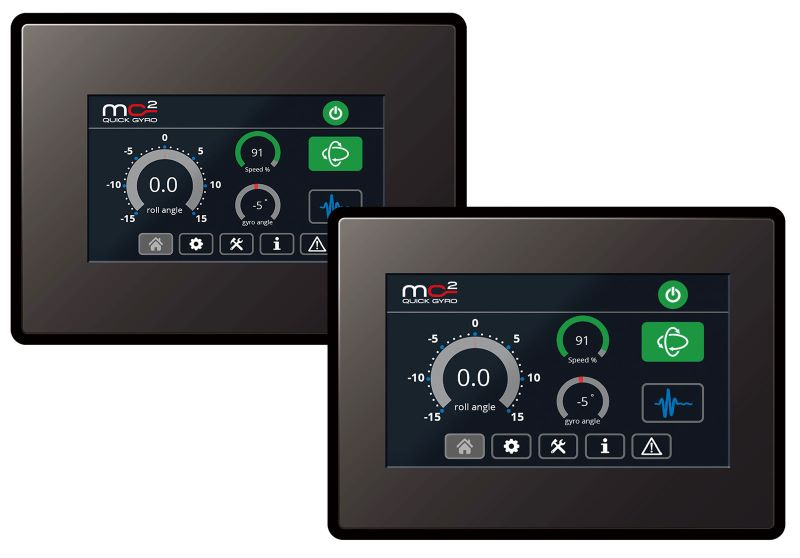

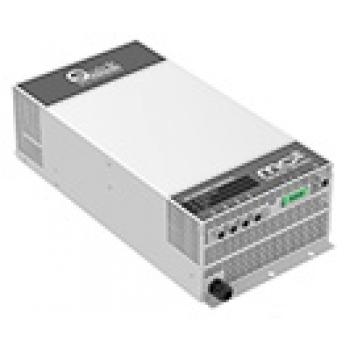

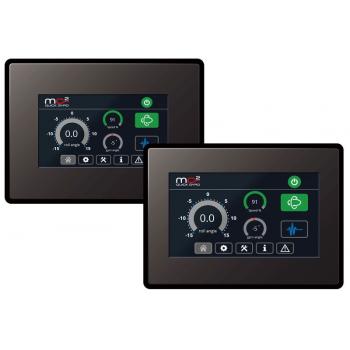

The gyroscope’s functions are controlled by two fundamental components of the system - the driver and the control panel.
Installation is exclusively carried out by Echomaster Marine Ltd engineers, authorised by Quick. The Quick technical support in conjunction with Echomaster Marine ensures that each installation is performed properly and certifies its proper operation with the “Quick commissioning.”
The MC2 Quick Gyro stabilizer, like any machine, needs periodic maintenance to be able to ensure that it always operates properly. Periodic maintenance can be performed onboard the vessel, without having to dismantle the stabilizer. MC2 Quick Gyros are protected, but not vacuum sealed, therefore they are easy to inspect. The periodic maintenance should be carried out by Echomaster Marine engineers or any other Quick authorised staff.
Output torque: 5340 N·m
Power absorbed: 1400 W max
Output torque: 6678 N·m
Power absorbed: 1500 W max
Output torque: 10342 N·m
Power absorbed: 1900 W max
Output torque: 12850 N·m
Power absorbed: 3000 W max
Output torque: 16350 N·m
Power absorbed: 3200 W max
Output torque: 18700 N·m
Power absorbed: 3500 W max
Output torque: 25464 N·m
Power absorbed: 4500 W max
Output torque: 30333 N·m
Power absorbed: 6000 W max
Output torque: 40324 N·m
Power absorbed: 7000 W max
Output torque: 55882 N·m
Power absorbed: 7000 W max
Output torque: 75000 N·m
Power absorbed: 14000 W max
