Simrad I3005 Instrument
Recommended For:
- Coastal Fishing
- Workboats
- Scientific Research
- Fish Farming
- Commercial Fishing
The Simrad I3005 instrument series offers a 5- superior colour display with easy touch control, and a variety of graphic layouts with the capability to enable up to eight different functions simultaneously. Offering a flexible installation that supports a wide variety of I/O signal types, both display sizes are approved for SOLAS vessels
The I3005 is IMO approved as a Rudder Angle Indicator, Heading Repeater, Propeller Pitch Indicator, Propeller Revolution Indicator, plus monitor other functions like Engine RPM, Wind Instruments, Digital Data Thruster Propeller Pitch Angle and Boat Speed.
Offering a flexible installation that supports a wide variety of I/O signal types, both display sizes are approved for SOLAS vessels.
The IS300 Series has the capability to enable the following simultaneously:
IMO approved when paired with NMEA 2000, NMEA 0183, or LWE heading sensor, such as Simrad GPS and Gyro compasses.

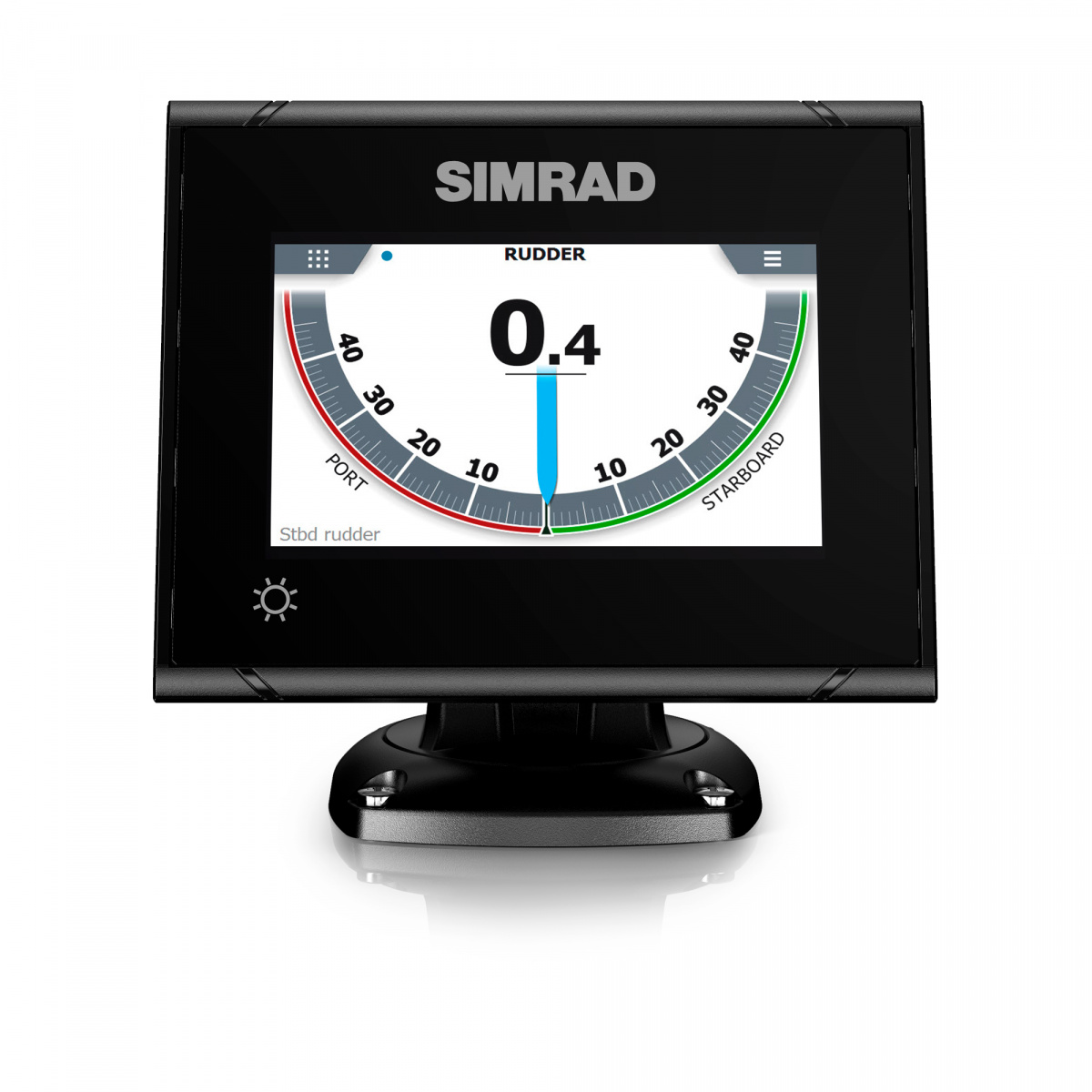

IMO approved when connected in an Autopilot System that has the optional display of rudder demand. Reading rudder positions from all Simrad rudder feedbacks or is compatible with NMEA 0183 feedbacks from other third-party systems.
5” non-IMO ROT Indicator with a configurable scale range and is compatible with Simrad GPS Compasses, HS60/70/80, Simrad Gyros GS80/85, and Simrad Magenetic Compasses Precision-9, RC-42
Configurable for use with Propulsion and Thruster
(Note: Transducer/sensor not offered by Navico)
IMO compliant with a selectable Scale Range
(Note: Transducer/sensor not offered by Navico)
With a Selectable Scale Range from 200 up to 10,000
(Note: Transducer/sensor not offered by Navico)

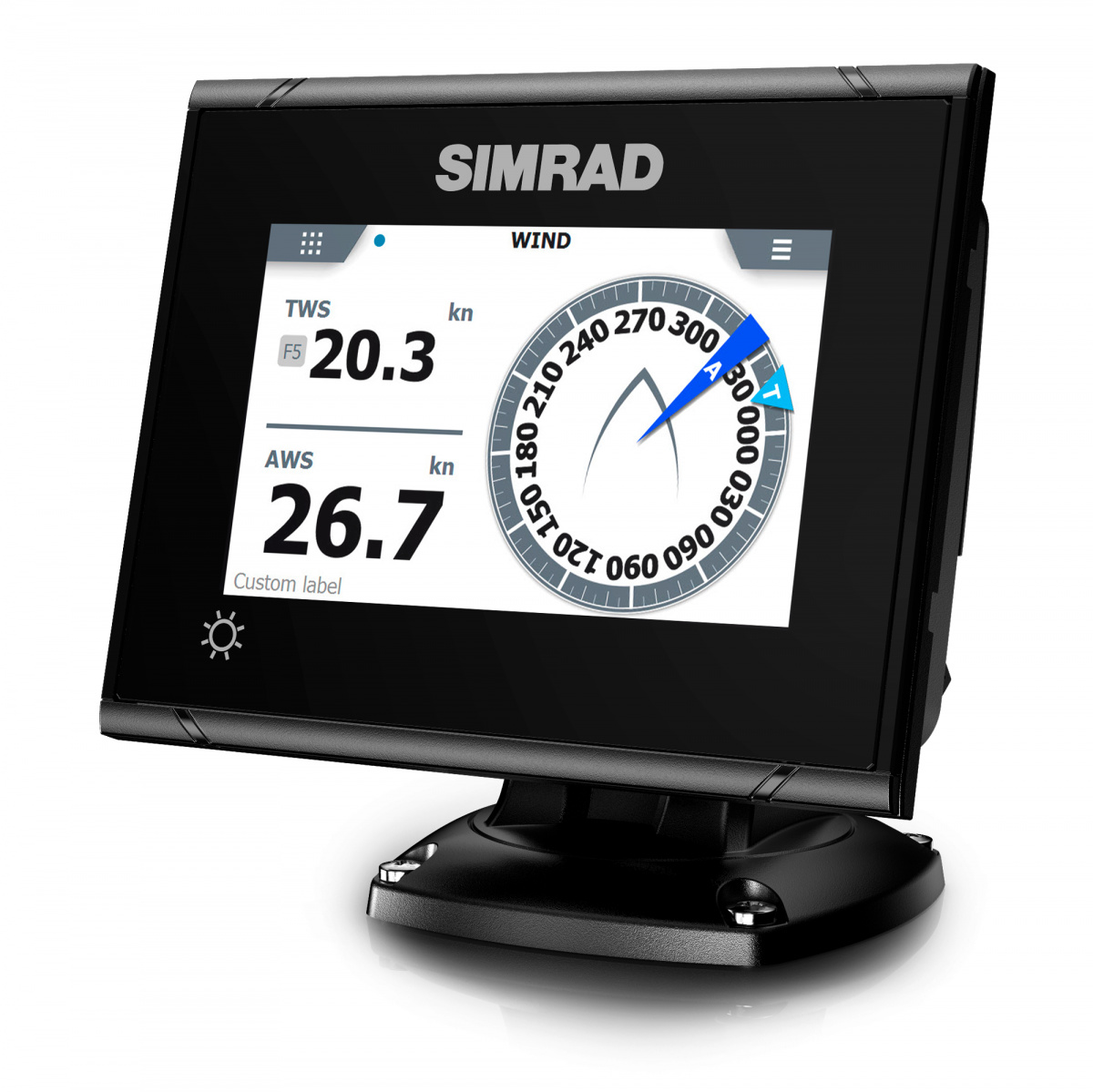

Measuring True Wind Speed and Angle, Apparent Wind Speed and Angle, Beaufort Wind Speed Indicator with Selectable Orientations (relative to North or the Ships’ Bow). Compatible with Simrad and B&G Sensors or any NMEA 2000 or NMEA 0183 Wind Sensors.

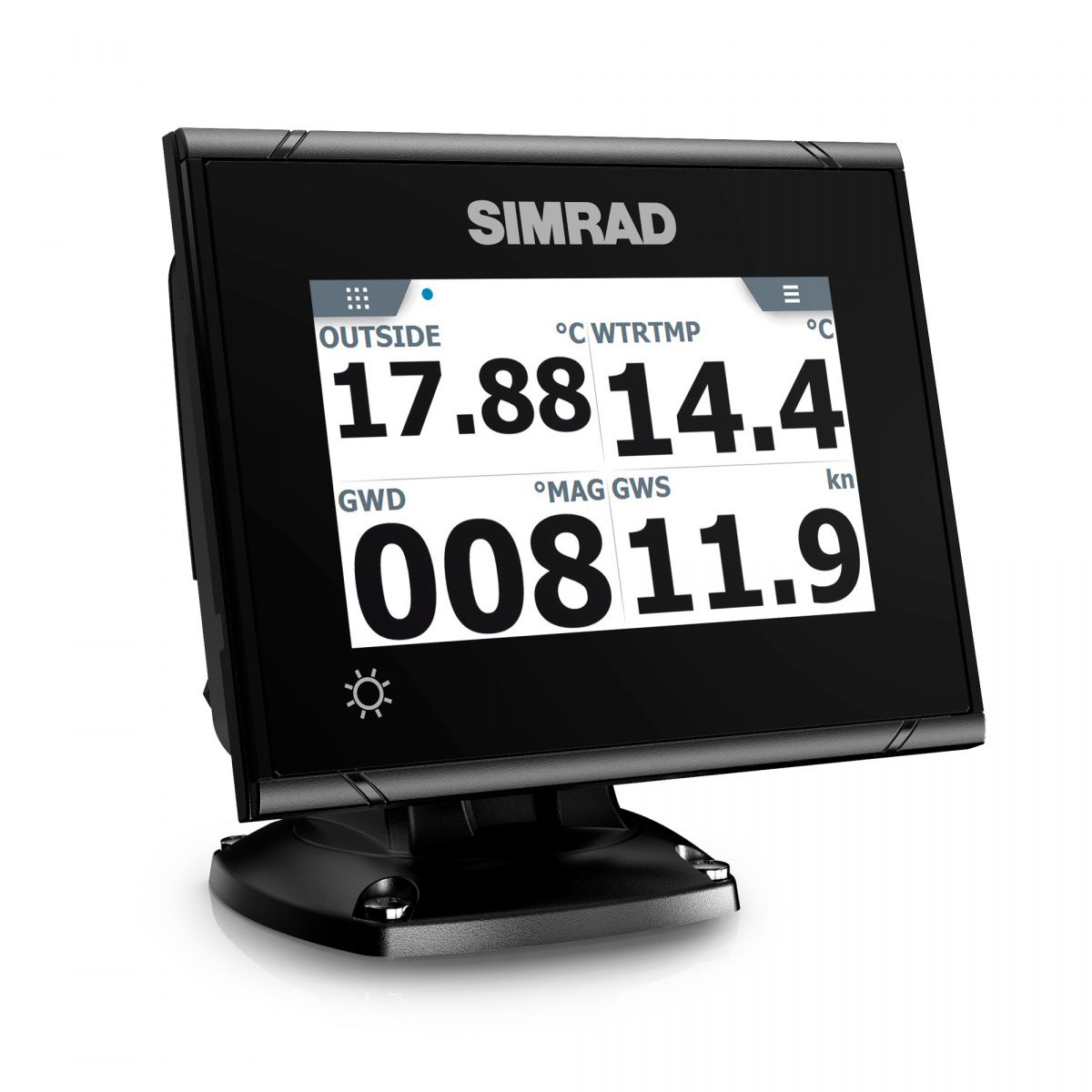

Data layout for display or a multitude of data types; Vessel, Environmental, Navigation, Engine, Depth, Speed, Heave, Pitch, Roll, Time & Date. Digital data types can only be selected from the available installed transducers and sensors.
