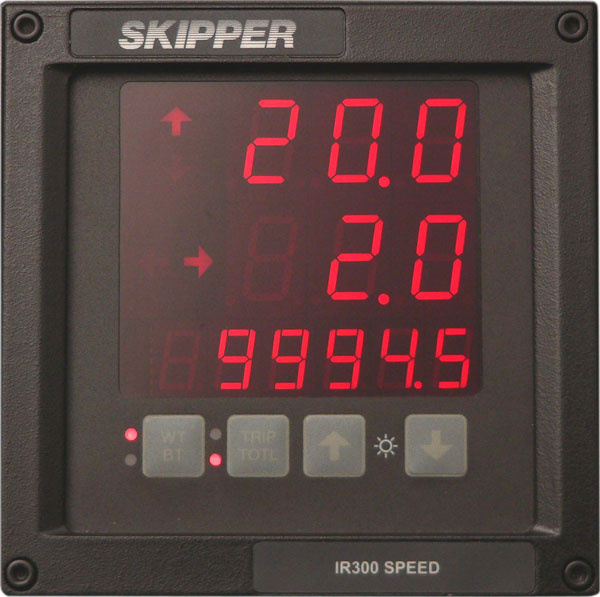

Skipper IR300 Digital Speed Repeater

The SKIPPER IR300 is a remote speed repeater for NMEA0183 signals. It is designed for use with SKIPPER Speed Logs. It may also be used with Speed Logs from other manufacturers, when these have an NMEA 0183 output.

Key Features

Alarms - Speed alarm
Trip counter
Distance counter
One, two or three axis indication
Bracket or panel mounting

Power supply:

DC: 10-40 V

Power consumption:

3 W at 24 VDC

Display:

2 lines with 7 segments 20x11 mm
1 line with 7 segments 20x11 mm

Display output:

Speed over ground: Longitudinal, Transversal fore, Transversal aft(Docking)
Speed through water: Longitudinal, Transversal fore, Transversal aft(Docking)
Distance travelled through water and over ground: Trip and Total

Other Features:

124x124 mm. Bracket or panel mounting. Brackets included.
Front plate:144x144 mm to DIN standard
Depth:59 mm
Weight:1 kg
IP56 rating
Inputs: NMEA 0183 protocols. Sentence: $-HDT, $-THS, Remote dimmer input, pulse, Speed: VBW, VTG, VHW, Distance: VLW
Classifications: Made according to IMO performance standard IEC 60945/2002
