JMC F-2000

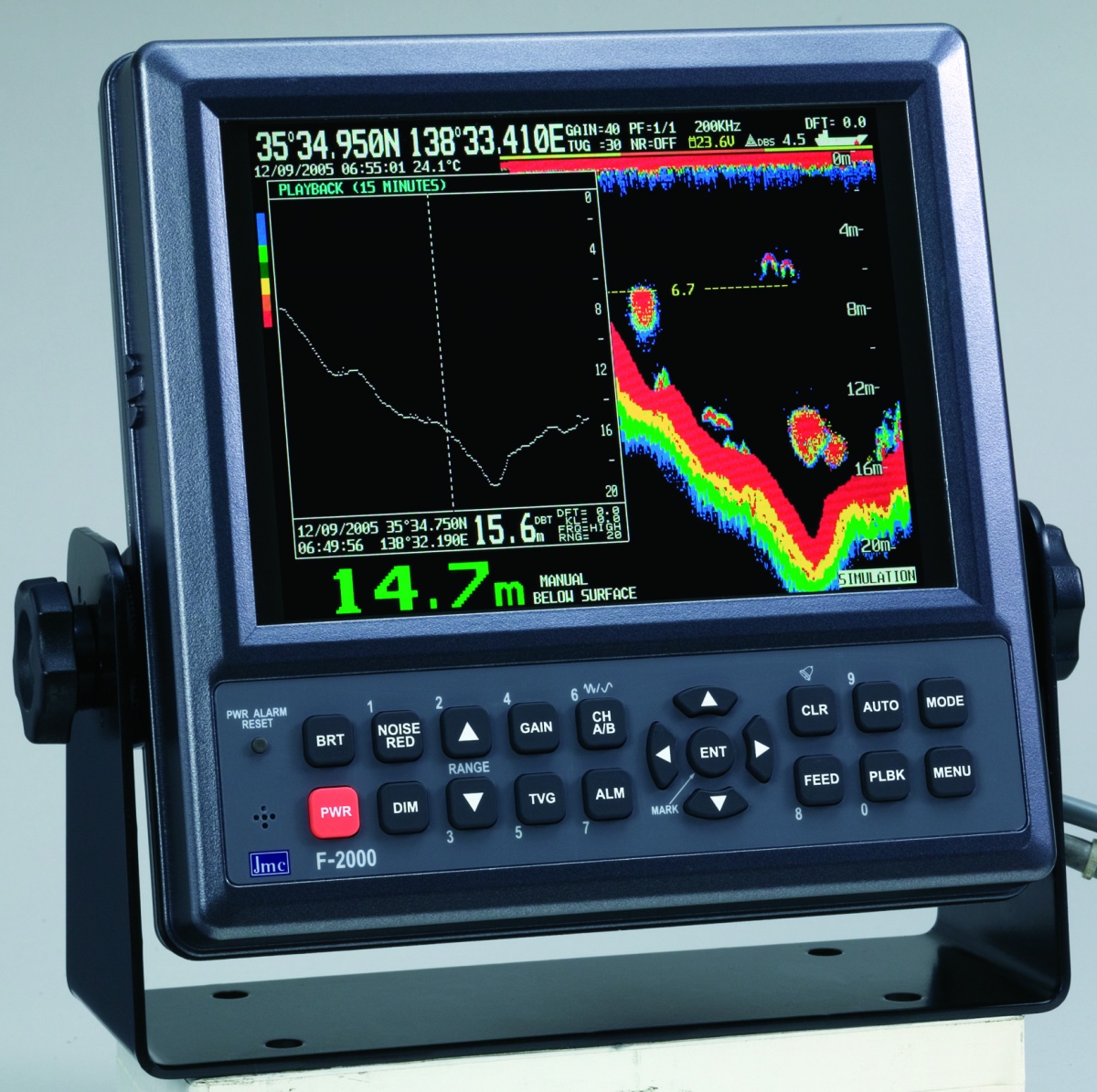

The F-2000 Navigation Echosounder from JMC is a compact, high end, dual frequency IMO approved echosounder.With excellent features including fully automatic operation, tracking bottom with appropriate range, gain and TVG functions, the JMC F-2000 is an ideal option for a cost effective Dual Frequency approved Echosounder.The F-2000 has an 8 inch colour TFT LCD display.It is also possible to store up to 24 hours of data for off line data processing. The F-2000 will also interface with a GPS sensor to store depth data with LAT/LON and date information.
Specifications
- Transducer Frequencies: 50 & 200 kHz, 100kHz & 100kHz (special order only), 135kHz (single) (special order only)
- Display: 8” VGA TFT LCD Display, Sunlight viewable
- Depth Ranges: 5 to 1000m in 8 range steps, automatic or manual
- Transmitter: 1kW maximum
- Data Storage: Up to 24 Hours
- External Interfaces: RS-232C, RS422, 8Pin I/O Data, Centronics Parallel
- Power requirements: 11-40 VDC, 17W
- Size: 260(W) x 243(H) x 102(D) mm cabinet with bracket
- Cabinet Weight: Approx. 3.4kg with Mounting Bracket
