Skipper ESN200

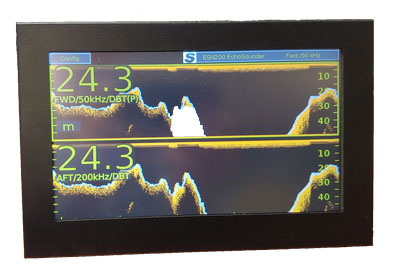

The Skipper ESN200 is a black box dual channel navigation echosounder with an easy to read 9" touch display. The echosounder graphics are continuously shown on the screen along with complete navigation details. For ease of use most of the functions are carried out automatically. The system can also be run in manual mode.
MED-B approved, with user friendly auto gain, range and power settings. An GDS101/102 adapter plate is also available for retrofit installations.
With a 24 hour logging history plus the ability to use the external logging feature makes the Skipper ESN200 your primary choice for a navigation echsounder.
| Power Supply
|
20 - 32 V and/or 115/230 VAC |
| Display |
9" Touch Display
|
|
Mounting Dimensions |
Cut out: 224.5mm (w) x 140mm (h) Outside dimensions: 242mm (w) x 158mm (h)
|
|
Memory: |
24 hours history, external logging feature over network
|
|
Ranges: |
Selectable from 0 - 5m to 0 - 1,000m
|
|
Measuring accuracy: |
Error less than 1% |
|
Frequencies: |
Approved frequencies: 50/200kHz, 38kHz, 50kHz and 200kHz. Other frequencies covered 24kHz, 30kHz, 33kHz, 100kHz, 210kHz.
|
|
Output Power: |
Nominal 700 W, Max>1000W
|
|
Alarms: |
BAM compatible (IEC62923)(ALF and ALR), Interlan sounder, Relay output and AUX in/out |
|
Calendar/Clock |
From GPS input |
|
Data output:
|
2 x LAN (IEC61192-1) Control Unit 5 x NMEA 0183(IEC61162-1) Control Unit 2 x AUX Control Unit 1 x Relay Control Unit 3 x NMEA0183 Display Unit 1 x LAN Display Unit DPT PSKDPT DBS DBK ALR ALF
|
|
Inputs:
|
3 x NMEA0183 (IEC611262-1) Control Unit 1 x AUX Control Unit 2 x NMEA0183 Inputs (IEC61192-1) Display 1 x LAN Display Accepting signals from GPS, Gyro, Alarm and Draft sensor
|
|
Language: |
English |
