Skipper ESN100

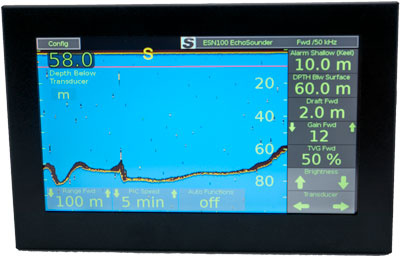

The Skipper ESN100 is a black box single channel navigation echosounder with an easy to read 9" touch display. The echosounder graphics are continuously shown on the screen along with complete navigation details. Most of the functions are carried ut automatically with the user friendly automatic settings. The system can also be run in manual mode.
MED-B approved, with user friendly auto gain, range and power settings. An GDS101/102 adapter plate is also available for retrofit installations.
| Power Supply
|
Control Unit 10 -32V DC Transceiver Unit 21 - 36V DC |
| Display |
9" Touch Display
|
|
Mounting Dimensions
|
Cut out: 224.5mm (w) x 140mm (h) Outside dimensions: 242mm (w) x 158mm (h)
|
|
Memory: |
24 hours history, external logging feature over network
|
|
Ranges: |
Selectable 0 - 1,000m
|
|
Measuring accuracy: |
Error less than 1% |
|
Frequencies: |
50 and 200kHz selectable Dual Frequency (50/200kHz) transducer may be used but only one frequency used.
|
|
Output Power: |
Approx 700 W
|
|
Alarms: |
Follows IEC standards (ALF and ALR) |
|
Calendar/Clock |
From GPS input |
|
Data output:
|
1 x NMEA 0183(IEC61162-1) DPT PSKDPT DBS DBK ALR ALF
|
|
Inputs:
|
2 x NMEA0183 (IEC611262-1) Accepting signals from GPS, Gyro, Alarm and Draft Sensor
|
|
Language: |
English |
