Actisense NGX-1 NMEA 2000 Dual Gateway
Intelligent Gateway technology enables interfacing with NMEA 2000 and a PC, and converting between NMEA 0183 and NMEA 2000.
The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.
The NGX-1 provides an uncomplicated way to link between a boat’s data networks and converts NMEA 0183 data into NMEA 2000 data and vice-versa. Multiple NGX-1 units can be used to multiplex numerous NMEA 0183 devices onto the NMEA 2000 network, using the network as a means of combining and transferring all data from one place to another.
The NGX-1 is also an NMEA 2000 to PC interface, able to precisely transfer messages to and from the NMEA 2000 bus. It is compatible with a wide range of chart-plotters, display and configuration applications available for PCs.
Features
- Vital NMEA 2000 diagnostic tool
- USB version is fully isolated to prevent dangerous ground loops
- ISO version has OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422
- Up to 230,400 baud data transfer rate
- Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
- Supports Fast Heading at 10Hz
- Integrated 1.5m drop cable
- Multiple diagnostic LEDs
Benefits
- Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
- Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
- Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
- Configure and flash-update Actisense products on the bus
- Upgrade NMEA 0183 equipment to NMEA 2000
- Allow NMEA 0183 devices to receive vital NMEA 2000 data
- Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
- Reliable, renowned bi-directional conversion engine
- Supports a wide range of conversions including AIS
- Easily configurable using Actisense Toolkit
The NGX-1 is available in two versions:

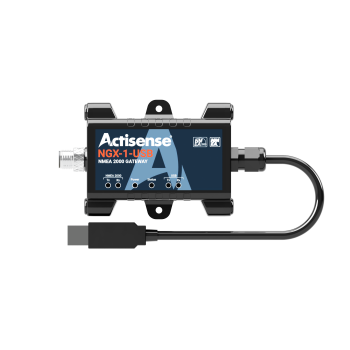

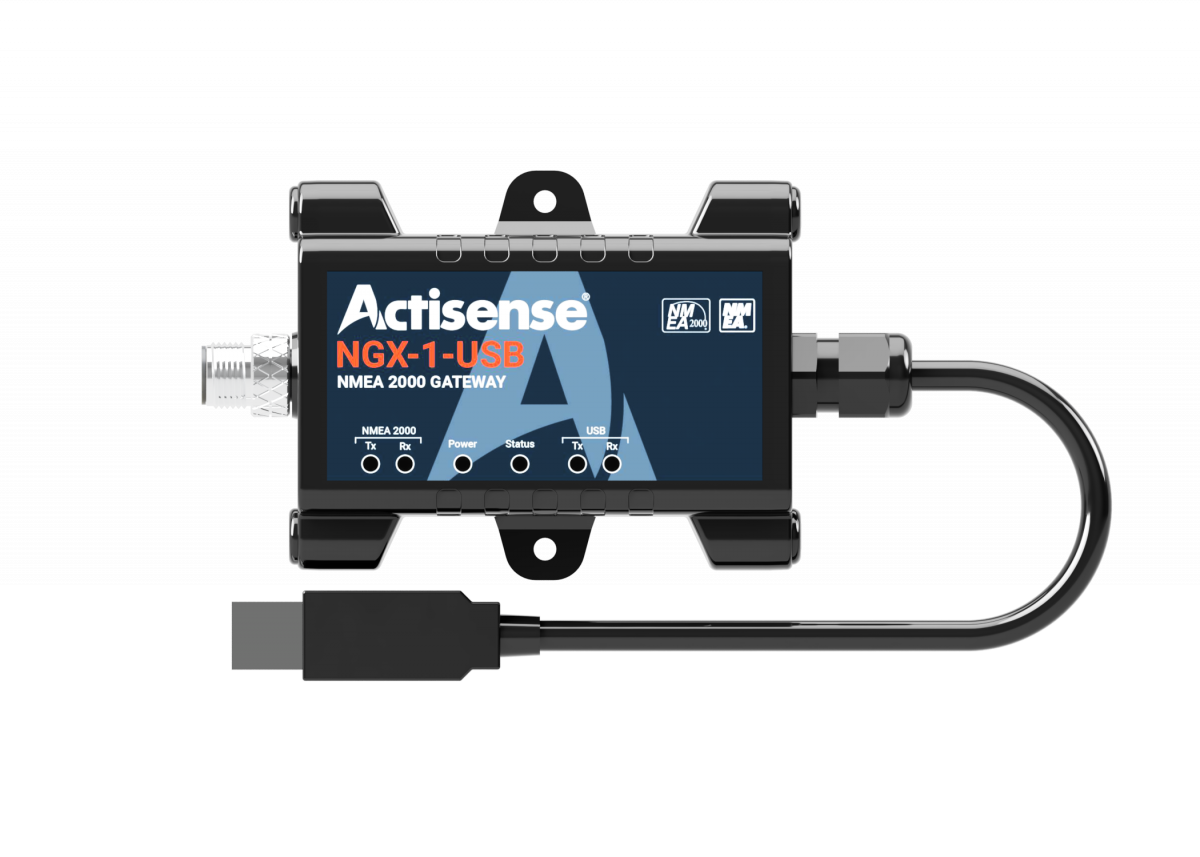

NGX-1-USB: equipped with a USB cable to allow Plug and Play connectivity with a PC.

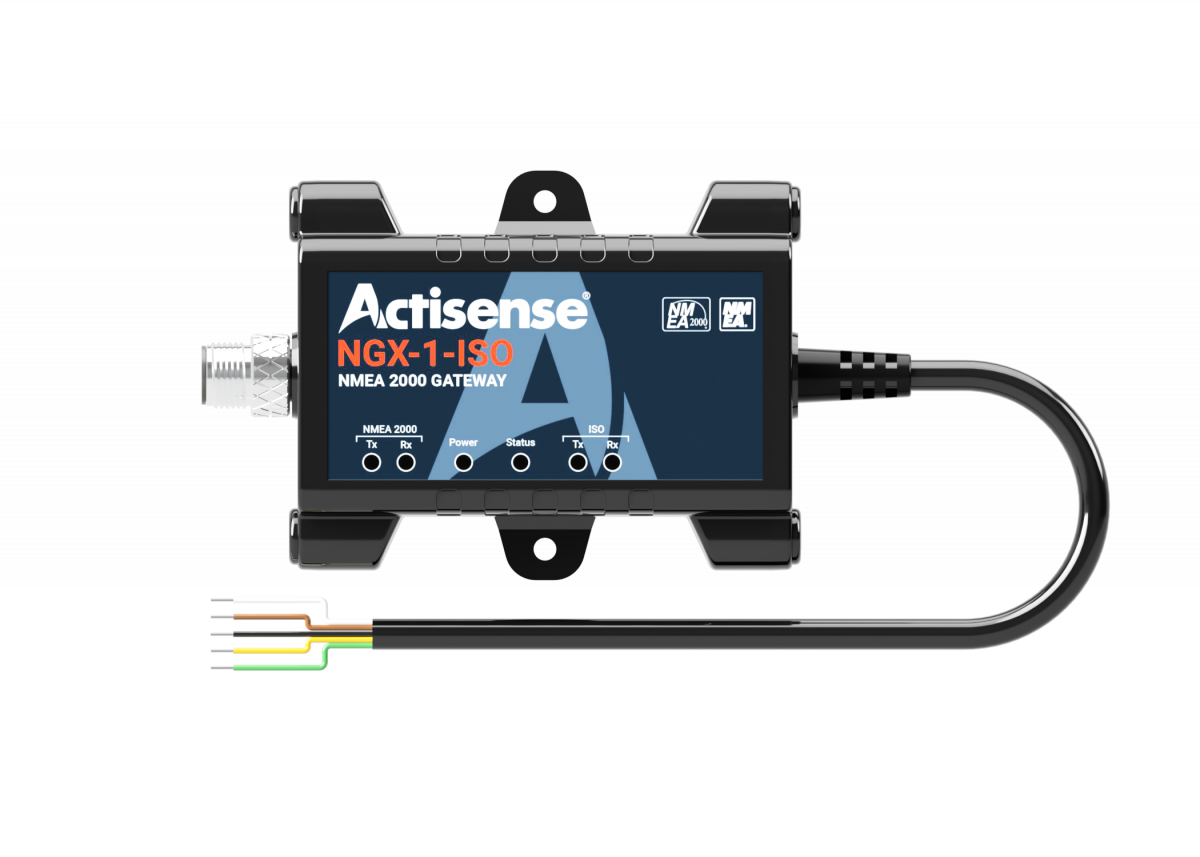

NGX-1-ISO: equipped with a bare wire open ended cable, allowing for connectivity to an NMEA 0183 device, or Serial Port / DB-9.
