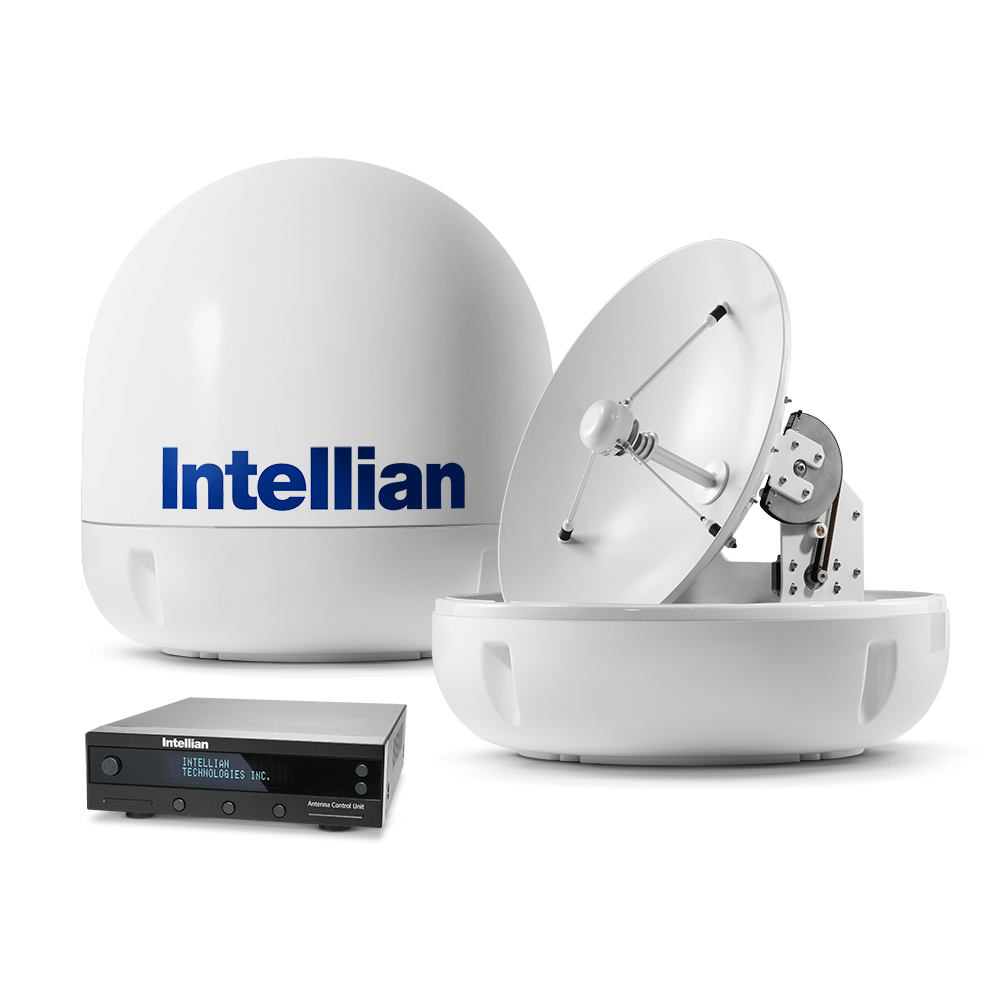

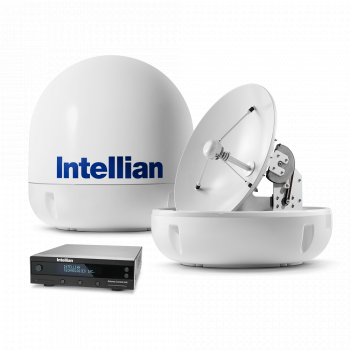

TV@sea i6/i6P Satellite TV System

Recommended For:

1. Scientific Research
2. Commercial Fishing
3. Workboats
4. Fish Farming

Downloads:

• i6 i6P Datasheet

TV@sea i6/i6P Satellite TV System

With its highly accurate satellite tracking capability, the i6 outperforms in all conditions.

Features

• The available i6W is equipped with Intellian's patented WorldView LNB, which allows for complete global operation without needing to adjust the antenna
• The available i6P is equipped with Automatic Skew Control, which allows for better satellite tracking on vessels operating over greater distances
• The available i6PE is equipped with Automatic Skew Control combined with extended elevation (-15° to 90°) for operation in extremely high latitudes Auto satellite switching function from your remote control
• Compatible with leading satellite TV service providers around the world 45° per second turn rate ensures signal tracking at high speeds and in rough seas
• Simplicity of design, no external compass or rate sensors required Built in GPS enables faster signal acquisition
• Built-in HD module for Ku-band

Constant, Seamless Reception

The best selling system the i6 is renowned for its robustness and exceptionally strong signal gain. Great for extended offshore voyaging, the i6 is ideal for ocean cruisers, larger yachts and commercial vessels.

When equipped with our dome supplier Intellian’s proprietary WorldView LNB, the i6 can operate in any global coverage area without manual intervention.

WorldView Capable

We are pleased to be associated with Intellian as our Dome supplier. They have been responsible for the most significant advances in TVRO antenna technology in the last decade. For years, a common issue faced by anyone using a conventional antenna has been having to climb the mast to remove the radome and change antenna components when moving from one global region to another.

In 2011, Intellian solved that problem once and for all by introducing the patented WorldView LNB. This ground-breaking device eliminates the need to change antenna components or re-wire the system as a vessel travels across the globe. Make it easy on yourself with the WorldView LNB.

Fully Automated System

Automatic Satellite Search and Identification Function.

2-axis high speed tracking system.

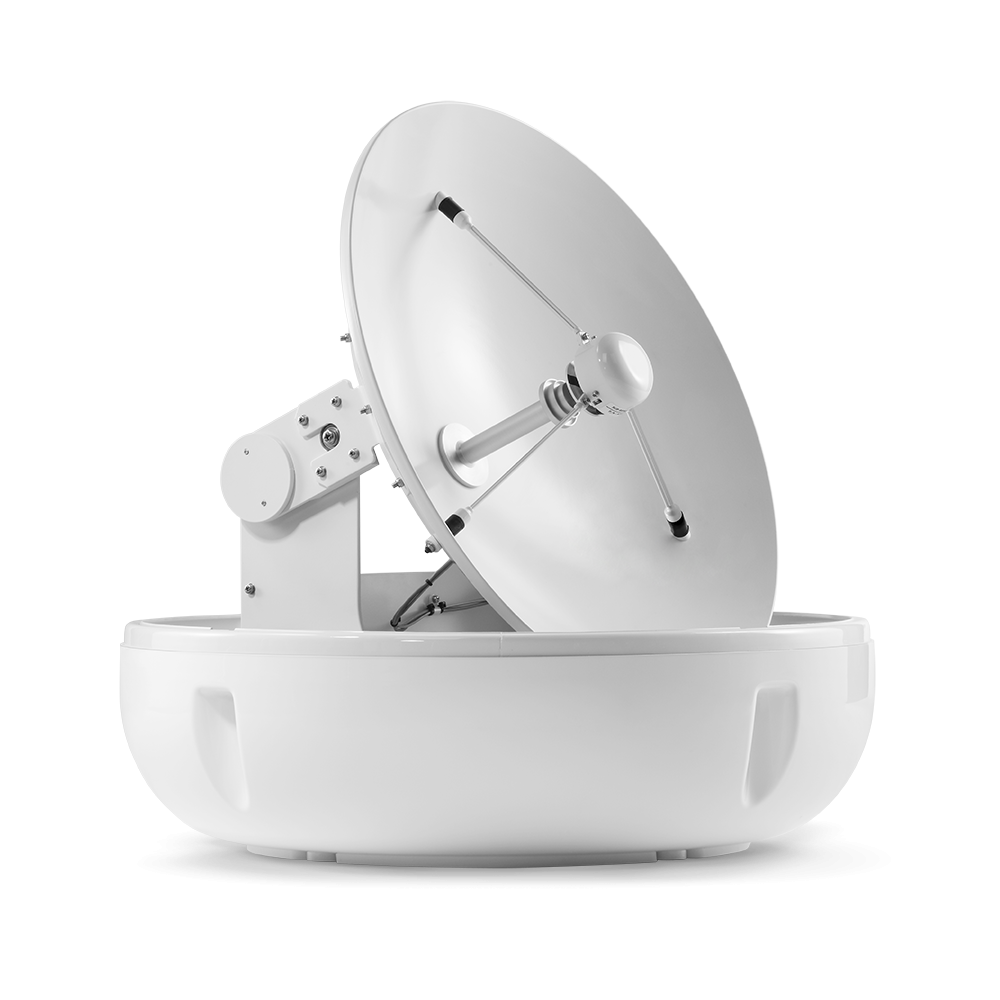

High Performance Antenna

60 cm (24 in) diameter parabolic antenna for receiving Ku-Band satellite signals.

Circular or linear polarization depending on region and LNB selected.

Built-in HD module for Ku-band HD TV reception.

iQ²: Quick&Quiet℠ Technology

iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort.

The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere.

Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas.

Antenna Control Unit

Intuitive controls and digital satellite information display on the ACU.

Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile.

DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module.

Multiple Receiver Capability

Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module) Using the MIM a master receiver can be selected to control the target satellite.

Built-in GPS and NMEA 0183 Interface

The i6 includes a built-in GPS inside the Antenna Unit for faster signal acquisition. The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU.

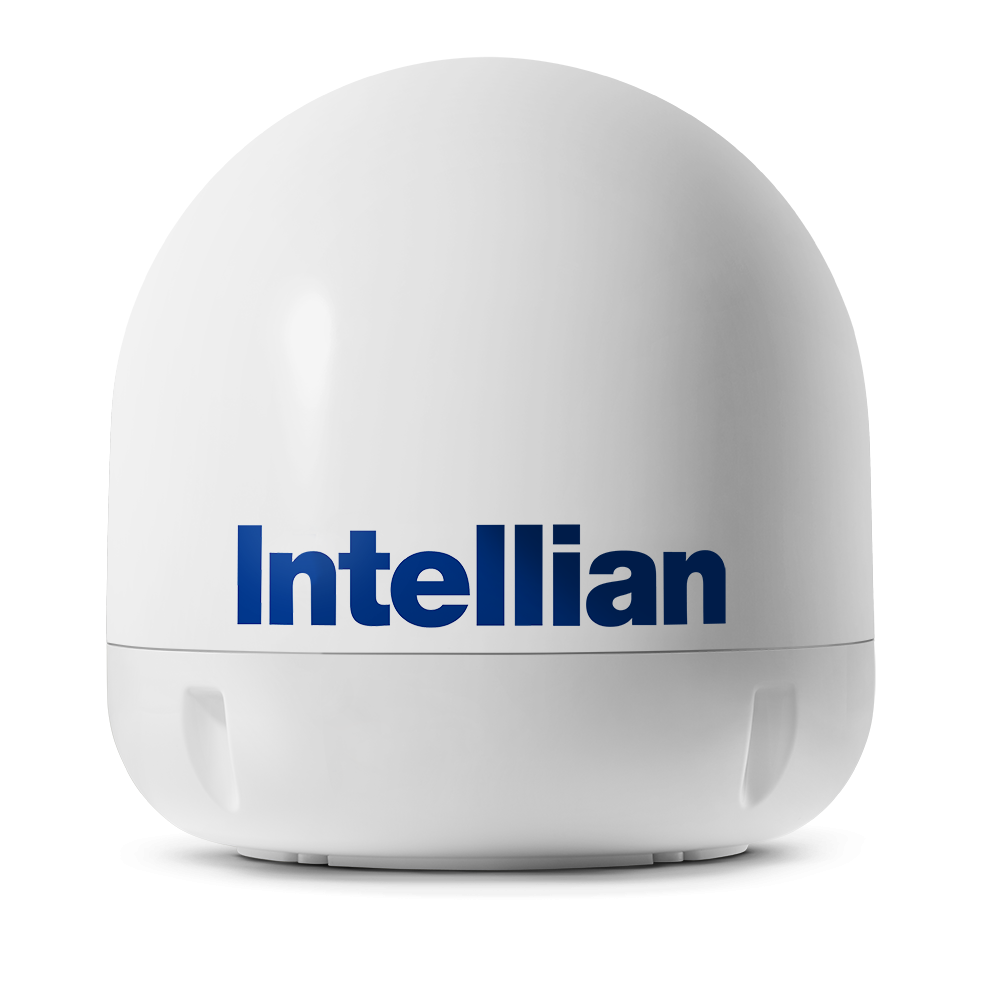

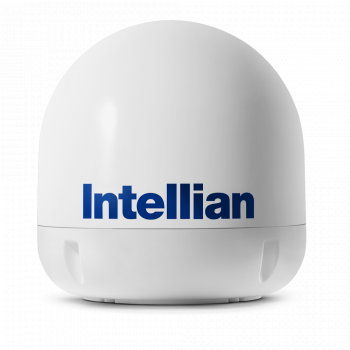

Stylish Radome Profile

70 cm (27.5 inch) antenna radome diameter

Antenna weighs less than 20 kg (44 lbs)

Three Year Global Warranty

Industry leading 3-year parts and workmanship guarantee with a 1-year labour warranty for all antenna systems, ensuring peace of mind with your hardware investment.
