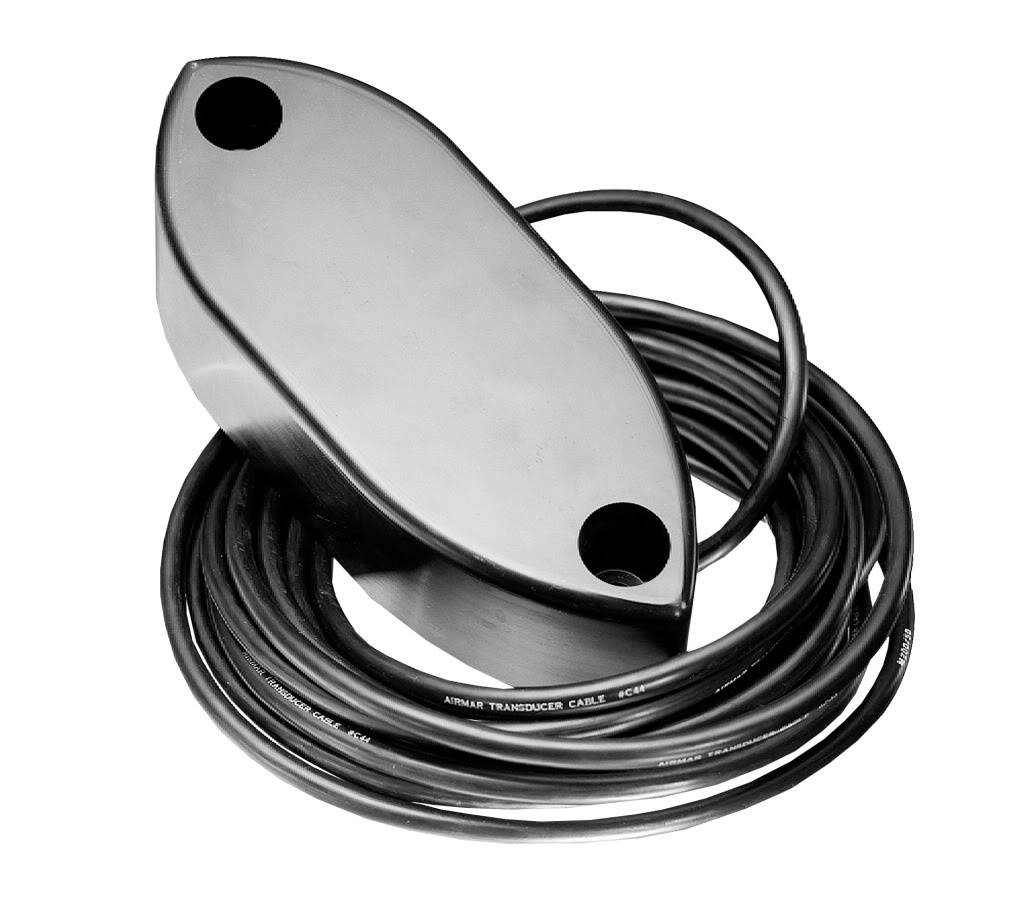

Airmar M155 38kHz
This M155 model features a highly efficient thirteen element, 38 kHz ceramic array for excellent deep water fishfinding performance. Its design is easier and less costly to install than magnetorestrictive transducers requiring steel tanks.
Applications
- Commercial Fishing Vessels
Features
- Low ringing, low sidelobe 38 kHz array allows fishermen to see bottom structure clearly and to easily discriminate between bottom structure and target fish
- Fairing vertically orients sound beams for stronger return echoes resulting in optimal sounder performance
- Stuffing tubes are available to form a watertight channel for cable routing and are available in a variety of materials to match all hull types
- Easy installation with supplied rods and hardware
Specifcation
- Frequency: 38kHz
- Beam Width: 11° x 21°
- Rated RMS Power: 1.2kW
- Weight: 6kg. (13lb.)
Notes:
- Can be mounted as an in-hull in fiberglass hulls for precise echosounding- even at speeds over 20 knots (23 MPH)
- Airmar's M155 fairing is easy to cut and will not swell or rot
- Streamlined shape minimizes drag
- Seamless SEALCAST™ urethane housing for long life underwater
