Simrad 200kHz 200-7C

Recommended For:

1. Coastal Fishing
2. Scientific Research
3. Commercial Fishing

Simrad 200kHz 200-7C

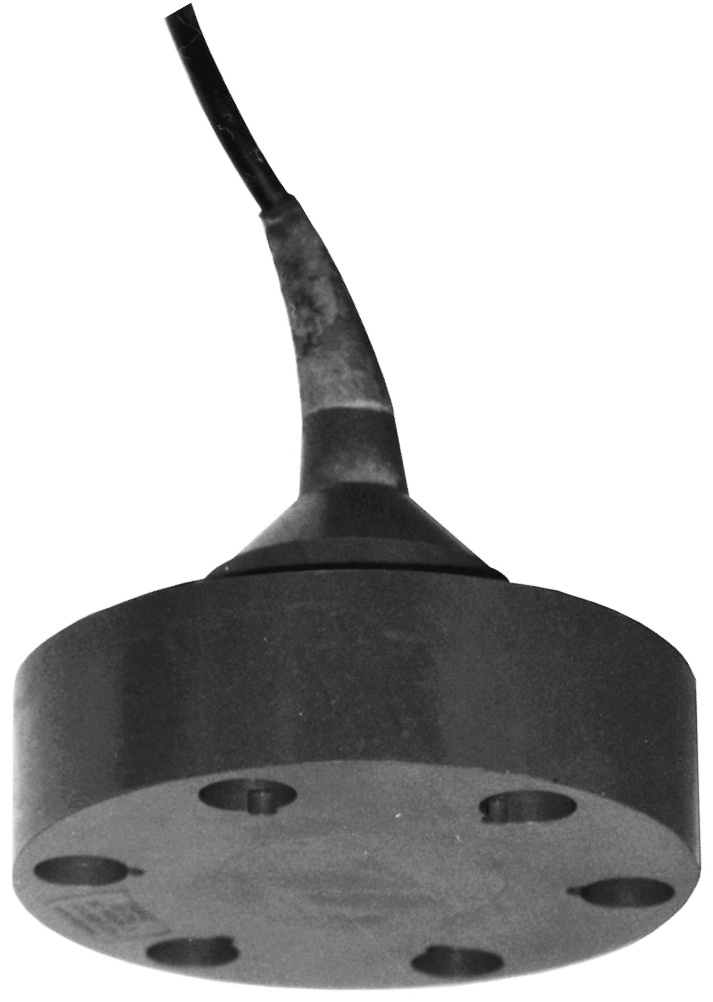

The Simrad 200-7C is a composite, single-beam transducer with a large bandwidth. It provides considerable range resolution and allows targets to be detected at a depth of 10 cm below the transducer due to its rapidly decaying transmission pulse.

Applications:

• Fishery echo sounders
• Fishery Research echo sounders

Key technical specifications:

• Frequency: 200 kHz
• Circular beamwidth: 7 ± 1 degree
• Maximum pulse power input: 1500 W
• Max. continuous input power: 10 W
• Maximum transducer depth: 20 m
• Cable length: 20 m
• Weight without cable: 3 kg
• Diameter: 195 mm
• Height, body: 120 mm
