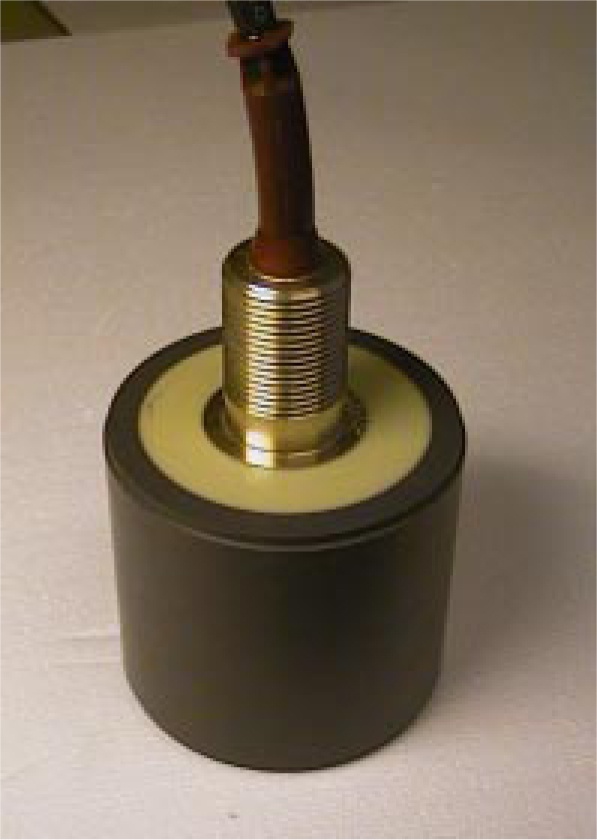

Simrad 200kHz 200-7G
The Simrad 200-7G is a single-beam transducer in a small housing, intended for portable use and for level measurements inside tanks.
Applications:
- Fishery echo sounders
- Single beam hydrographic echo sounders
Key technical specifications:
- Frequency: 200 kHz
- Circular beamwidth: 7 ± 1 degree
- Maximum pulse power input: 1000 W
- Max. continuous input power: 20 W
- Maximum transducer depth: 20 m
- Cable length: 15 m
- Weight without cable: 2 kg
- Diameter: 106 mm
- Height, body: 92.5 mm
- Height, threads: 50 mm
- Threads: 1 inch
