Simrad 50kHz 50-18

Recommended For:

1. Large Commercial Vessels
2. Coastal Fishing
3. Scientific Research
4. Commercial Fishing

Simrad 50kHz 50-18

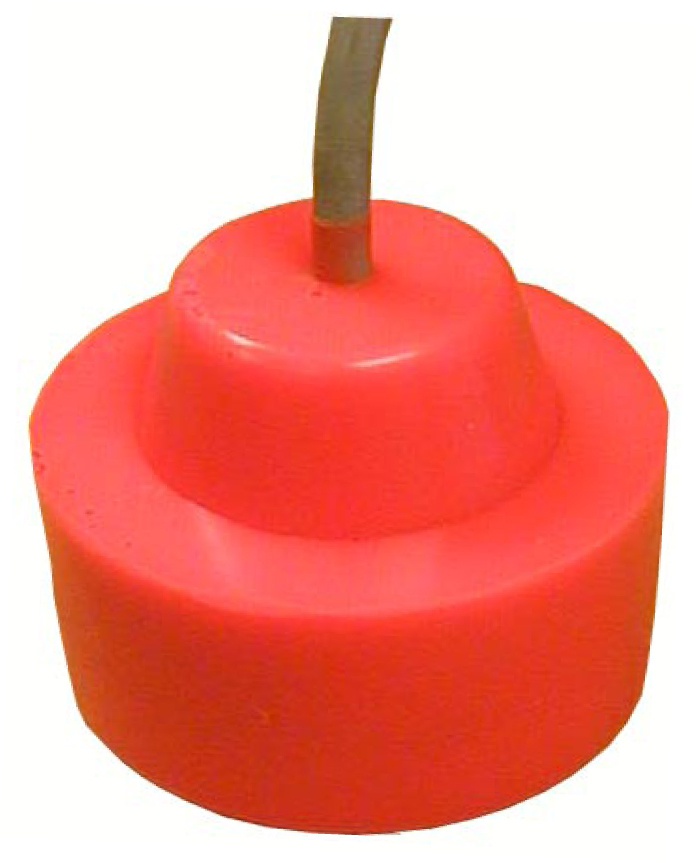

The Simrad 50-18 is a small, single-beam transducer incorporating seven Tonpilz elements in a polyurethane housing. Its compact design requires little space and it is employed extensively with navigational echo sounders. A compatible steel tank and mounting ring are also available.

Applications:

• Fishery echo sounders
• Single beam hydrographic echo sounders
• Navigation echo sounders

Key technical specifications:

• Frequency: 50 kHz
• Circular beamwidth: 18 ±3 degrees
• Maximum pulse power input: 500W
• Maximum continuous input: 10 W
• Maximum transducer depth: 10 m
• Cable length: 20 m
• Weight without cable: 2 kg
• Diameter: 129 mm
• Height, main body: 115 mm
