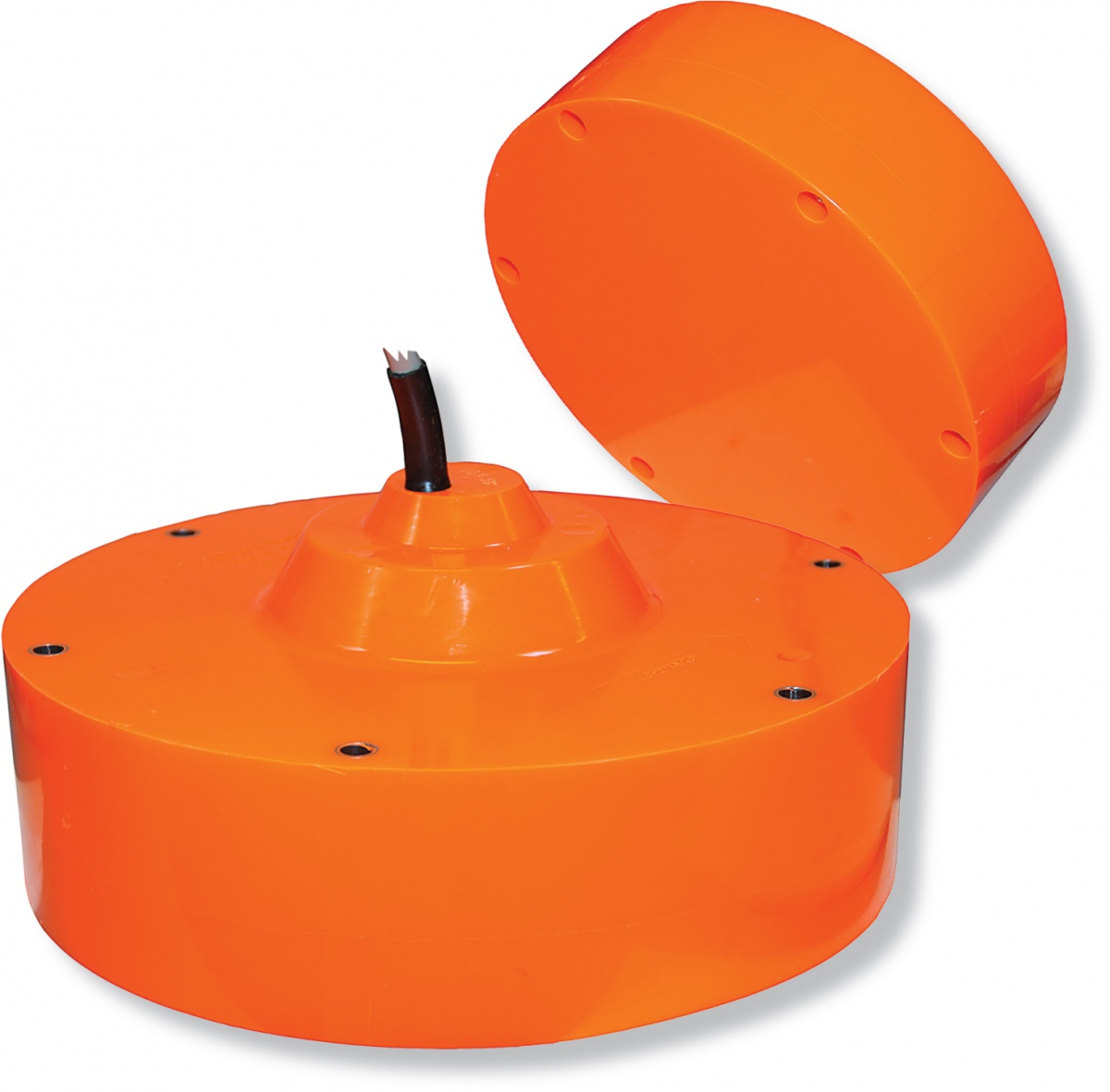

Simrad 50kHz 50-7
The 50-7 is a single-beam transducer. It incorporates 48 Tonpilz elements in a circular housing which is easily hull mounted.
Applications:
- Fishery echo sounders
- Single beam hydrographic echo sounders
Key technical specifications:
- Frequency: 50 kHz
- Circular beamwidth: 7 degrees
- Maximum pulse power input: 2000 W
- Maximum continuous input: 30 W
- Maximum transducer depth: 20 m
- Cable length: 20 m
- Weight without cable: 16 kg
- Diameter: 336.5 mm
- Height, main body: 150 mm
