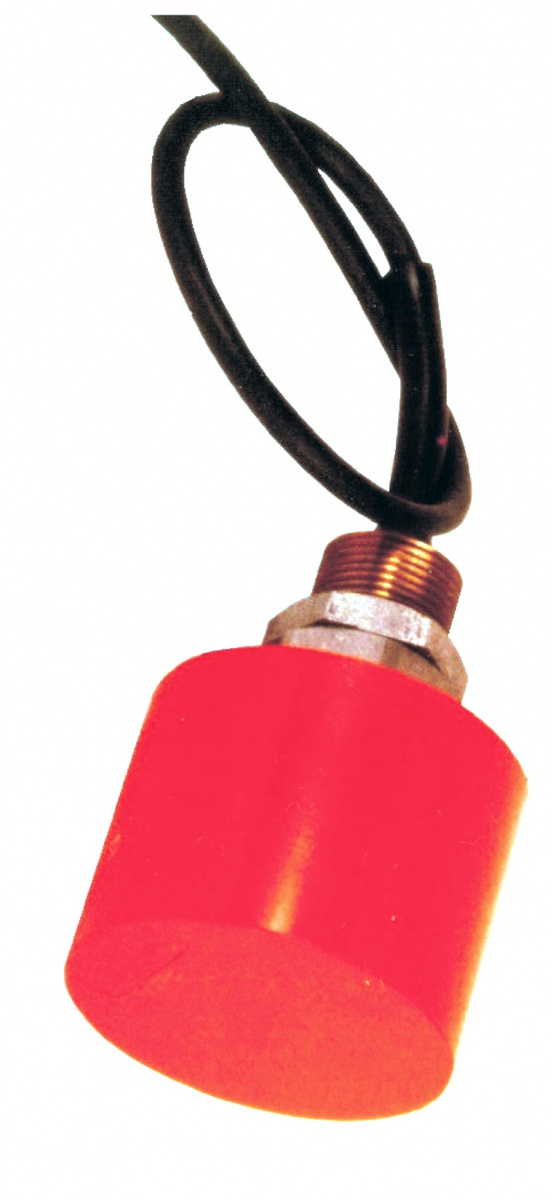

Simrad 710kHz 710-36E
With the narrow 2.8 degree beam, the Simrad 710-36 transducer is especially suited for detailed mapping of the bottom as well as objects in the water.
Applications:
- Fishery echo sounders
- Single beam hydrographic echo sounders
Key technical specifications:
- Frequency: 200 kHz
- Circular beam width: 2.8 ±0.5 degrees
- Max. input pulse power: 100 W
- Max. transducer depth: 500 m
- Cable length: 20
- Weight with cable: 4 kg
- Diameter: 87 mm
- Height, body: 70 mm
- Height, threads: 50 mm
- Threads: 1 inch
