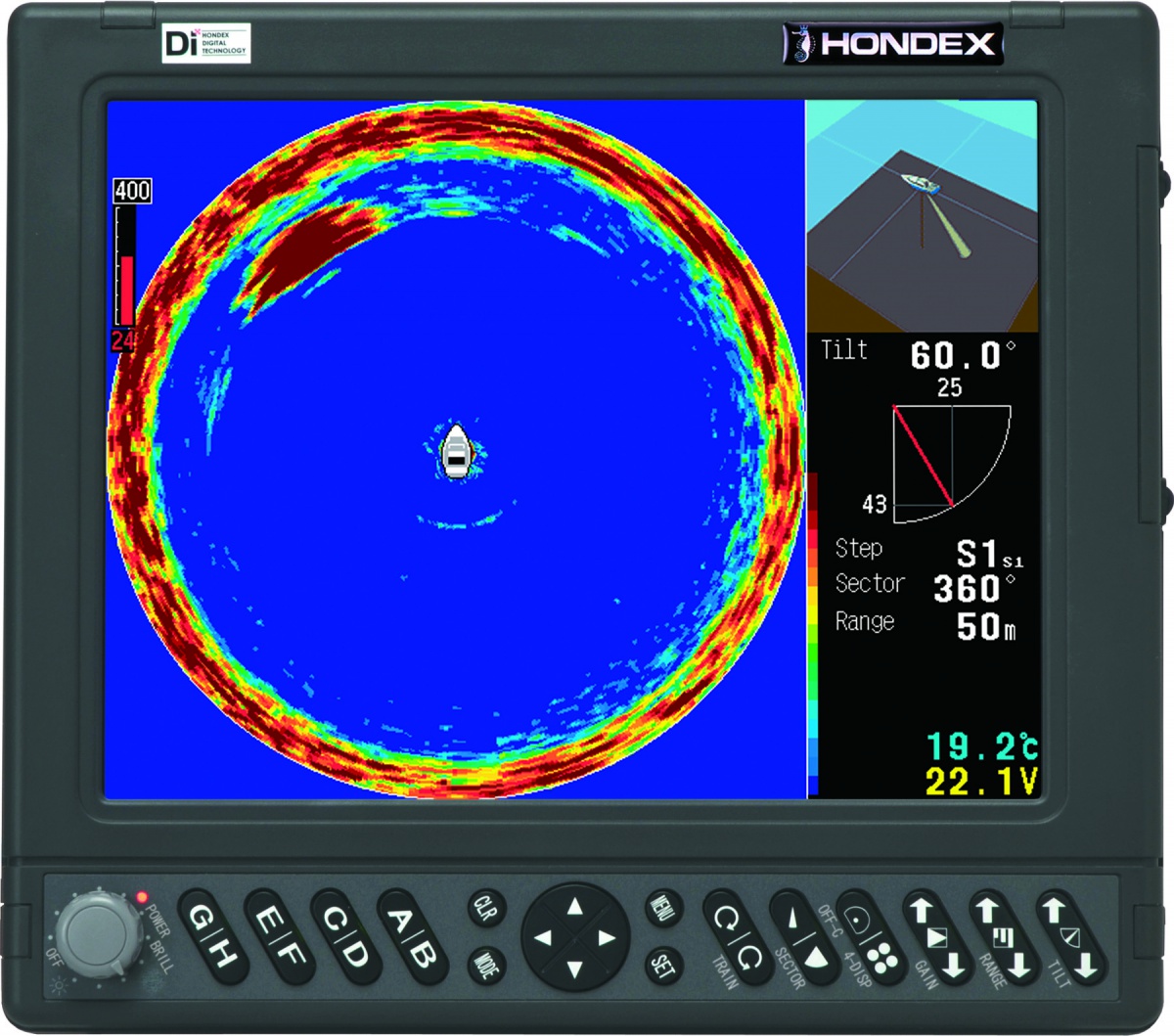

Hondex HE773II-DI

Click image for a larger view

Recommended For:

  • Coastal Fishing
  • Workboats

Find Your Nearest Dealer

Downloads:

Hondex HE773II-DI

Recommended For:

  • Coastal Fishing
  • Workboats

Ask Us a Question

Please fill in the short form below with your question, either about the Hondex HE773II-DI, or for some technical advice. Please include details of your vessel if you feel they will help us answer your query.

Thank you and we look forward to hearing from you!

Hondex HE773II-DI

The Hondex HE-773II-DI sonar was designed to meet the needs of inshore fishing vessels who require a cost-effective, comprehensive sonar solution that is available with a choice of either manual or automatic hoist.

The compact sonar features three operational modes – Sonar, Bottom Sonar and traditional Echosounder, and users will find that the 290kHz frequency provides higher resolution images for fish and bottom detection, whilst not interfering with the traditionally popular mackerel frequency of 200kHz.

Sonar Mode

Selectable detection range (scanning sector) to cover narrow to whole circle. It is also possible to select 4-Display Mode and Off-Centre Mode.

Bottom Sonar Mode

Sea floor condition or fish school are easily detected and shown as a cross section view by rotating the transducer

Echosounder Mode

The Honde HE773II-Di sonar can also display the bottom shape and fish school information just like a conventional echosounder.

Specifications

  • 10.4" Colour TFT LCD Display
  • 640 x 480 Pixel resolution
  • 11-35v DC Operating Voltage
  • 36W Power Consumption
  • Display Modes: Sonar Mode (Off-Centre Mode/4 Display Mode), Bottom Sonar Mode (4-Display Mode), Sounder Mode
  • Transducer Hull Unit: Manual or Automatic(12 or 24v available)
  • Output Power: 1kW
  • Frequency: 290kHz
  • Operating Range: 0 to 300m
  • Sonar Mode Tilt Range 0° to 90° (1° step)
  • Bottom Sonar Mode Beam Angle 30°/60°/90°/120°
