Simrad SY50
The Simrad SY50 is a compact omnidirectional medium frequency fish-finding
sonar designed for coastal fisheries.
The SY50 is mainly designed for smaller fishing vessels. It still offers the latest technology available. This includes functionality you have formerly found only on the larger sonars and acoustic systems we have delivered.
The transceiver electronics have been placed inside the cylindrical transducer. This means less cables, less noise and easier installation.
The hull unit can be placed on an installation trunk with a diameter of only eight inches. The height of the trunk and the length of the transducer shaft can be adjusted to fit the size of the vessel. The transducer can be lowered to 40 or 60 centimetres below the hull.
The centre operational frequency is 57 kHz, but you can select any operational frequency from 54 to 60 kHz in steps of 0.5 kHz. This frequency range gives you an operating range of up to 2000 metres depending on the acoustic conditions.
The compact size and ease of installation makes the Simrad SY50 ideal for vessels with limited room for a sonar installation. There is no transceiver cabinet, only a small power supply. All the transceiver electronics are contained inside the transducer.
The communication between the hull unit and the computer on the bridge is limited to a single Ethernet cable. Both the hull unit and the computer may also operate on DC power. This makes the SY50 a perfect choice for coastal fishing vessels that have no 3-phase power system on-board.
Using 256 individual receiver- and transmitter channels the SY50 offers a clear and high-resolution sonar presentation, one that is not previously seen on a sonar in this price range. Our well known “large sonar“ functions like full beam stabilisation, vertical views, FM transmission, single-ping transmission (horizontal and vertical in one ping) are included. The popular “Winson” operating software known from all Simrad products is used. With the familiar user interface available in almost 20 languages the SY50 is exceptionally easy to use.
The SY50 is provided with a small and compact computer. This computer does not contain any fans or other moving parts. It can therefore safely be installed and used in a humid environment.

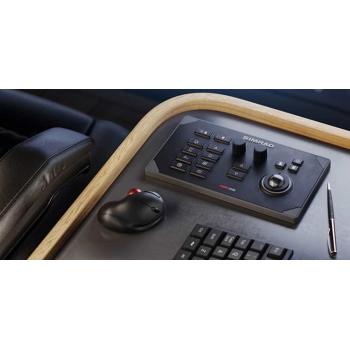

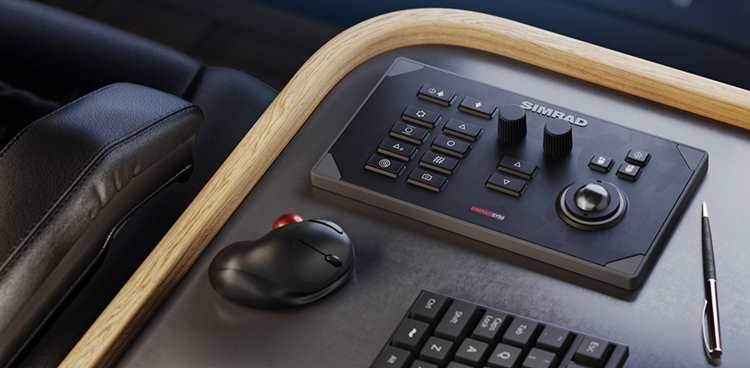

To simplify the basic operating features we can provide a small operating panel. This panel is smaller than the other panels we have. It is easy to install among other equipment on a populated control desk. The operating panel communicate with the computer using a single USB cable.

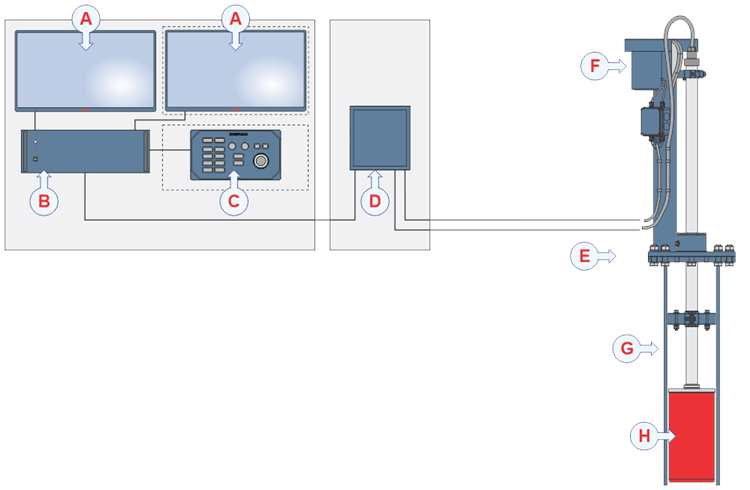

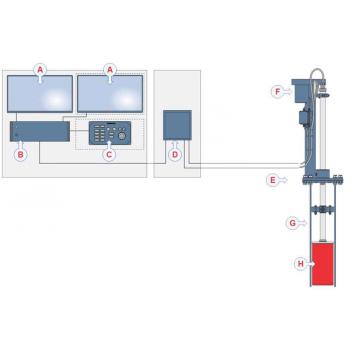

(A) Display (Second display is optional)
(B) Processor Unit
(C) Operating Panel (Option)
(D) Power Supply Unit
(E) Hull Unit
(F) Hoist motor
(G) Installation trunk
(H) Transducer
It is very important that the power to the SY50 hull unit is always turned on, even when the sonar is not being used. If the power is turned off, the force of gravity may cause the transducer to be inadvertently lowered. The sonar has a safety function that will automatically hoist the transducer if unexpected problems arise. This function prevents the transducer from being lowered when the sonar is not in use, but then the power must be turned on.
