Skipper DL1-Multi Single Axis Speed Log
The SKIPPER DL1 Multi is a Single Axis Doppler Speed Log, working on the doppler principle, providing longitudinal ship’s speed (STW) and distance relative to sea water. The SKIPPER DL1 Multi gives accurate navigation parameters measured as they happen and presented in a logical, user friendly way.
Key Features
- IMO Wheelmarked with MED-B
- Water doppler speed log in single axis (STW)

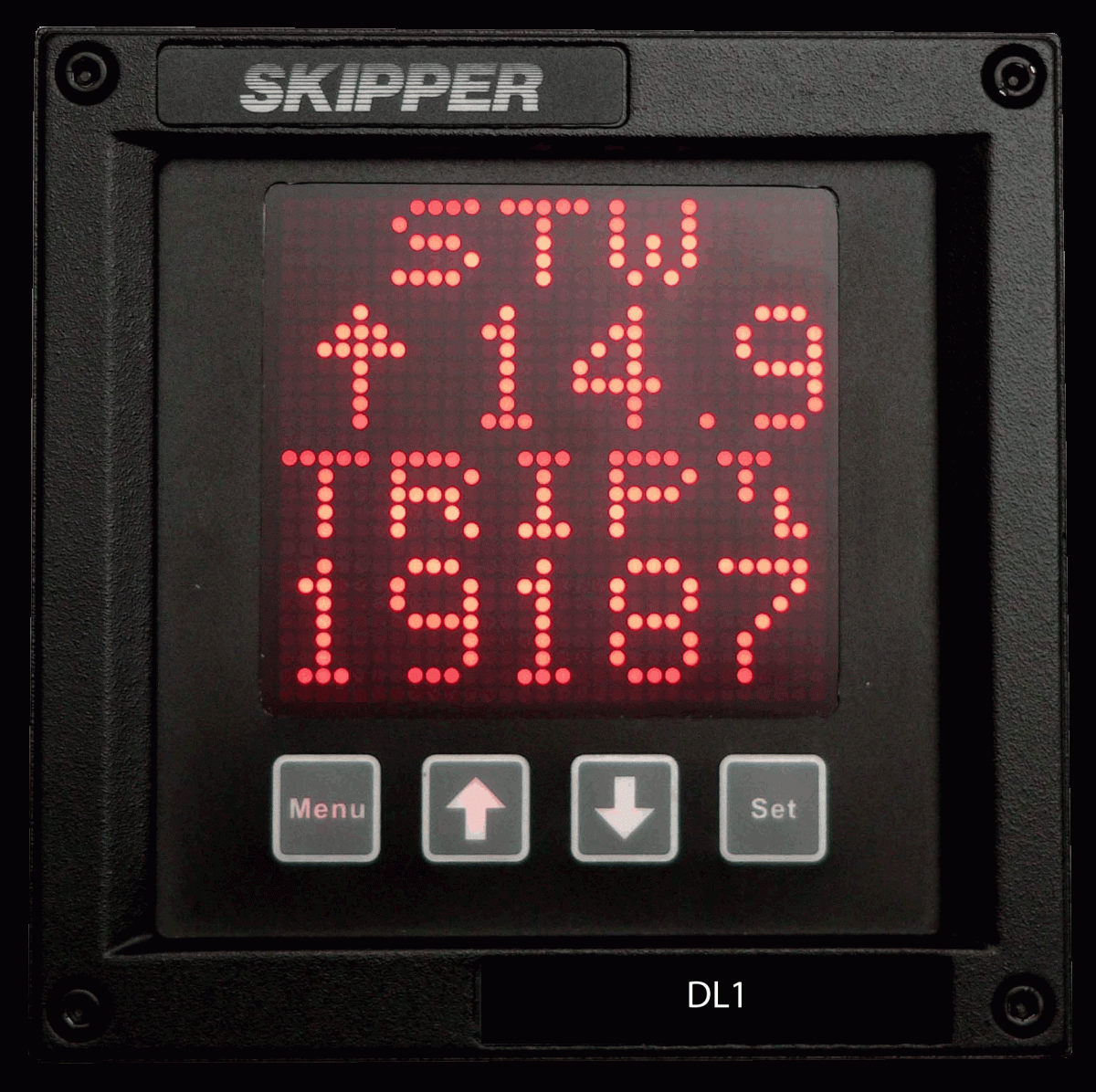

- Compact Display 144x144 mm
- Sea Temperature readout from sensor
- LAN and NMEA 0183 and Analog pulses output
- Fully automatic Settings
- RMRS and CCS available on request
Specifications
- Number of Axis: 1
- Speed range longitudinal: +/- 50 knots
- Speed range transversal:N/A
- Water track (from): 2 meter
- Temperature accuracy error: <1°C
- Power Supply: For Electronic unit (JB70D1-XX):AC:115-230 V 50/60 Hz, DC: 24 V, For Display (CD402CU-XX): DC: 24 V
- Power Consumption: Max 30 W for complete speed log
- Display: 28x30 pixle alphanumeric LEDs (red) with dimming
- Mounting dimensions display: 124x124 mm. Bracket or panel mounting, Front plate: 144x144 mm, Depth: 59 mm, Weight: 1 kgs for display, 2,5 kgs for electronic unit, 10 kgs for sensor with 40 m cable
- Standard cable length: None for display - pluggable (IP23), (max. 100 m)
- Mounting options: 60 mm Sea Valve for single bottom, 60 mm Sea Valve for double bottom, Steel Tank, Aluminium tank, 100 mm Sea Valve for single bottom, 100 mm Sea Valve for double bottom, Retrofit for Simrad NL-Log, Retrofit for Sagem/Safran, Retrofit for Sperry Naviknot SRD331, Retrofit for PCSV60
- Speed alarms: High and low speed limits, Power failure, Sensor failure
- Outputs: 1 x LAN (IEC61162-450), 4xNMEA 0183 (IEC61162-1/2), 3 x Auxiliary opto isolated (pulse, speed etc.), 1 x Contact closure (alarm etc.)
- Inputs: 1 x LAN (IEC61162-450), 1xNMEA 0183 (IEC61162-1), 2 x Auxiliary opto isolated (alarm)
- NMEA Outputs: Speed: VBW and VHW, Distance: VLW, Others: MTW (Temperature) and ALR, Accepted NMEA formats: VTG, RMC, GGA and ACK
- Classification: IMO Wheelmarked, CCS on request, RMRS on request, MED-B, IEC61023, IEC60945, IEC61162-1/2/450, IEC622
One full system consists of:
Compact Display options:
Sensor options:
- DL1SG-SA for 60 mm Sea Valve
- DL1ST-SA for Steel Tank
- DL1STA-SA for Aluminium Tank
- DL1SDB-SA for 100 mm Sea Valve
- DL1SN-SA for Simrad NL-Log retrofit
- DL1SS-SA for Sagem/Safran retrofit
- DL1SV-SA for Naviknot SRD331 retrofit
- DL1SX-SA for PCSV60 retrofit
Electronic Unit:
Bottom housings:
- SB-60-SA Sea Valve for double bottom
- DB-60-SA Sea Valve for single bottom
- ETNSTCL Steel Tank
- ETNALC Aluminium Tank
