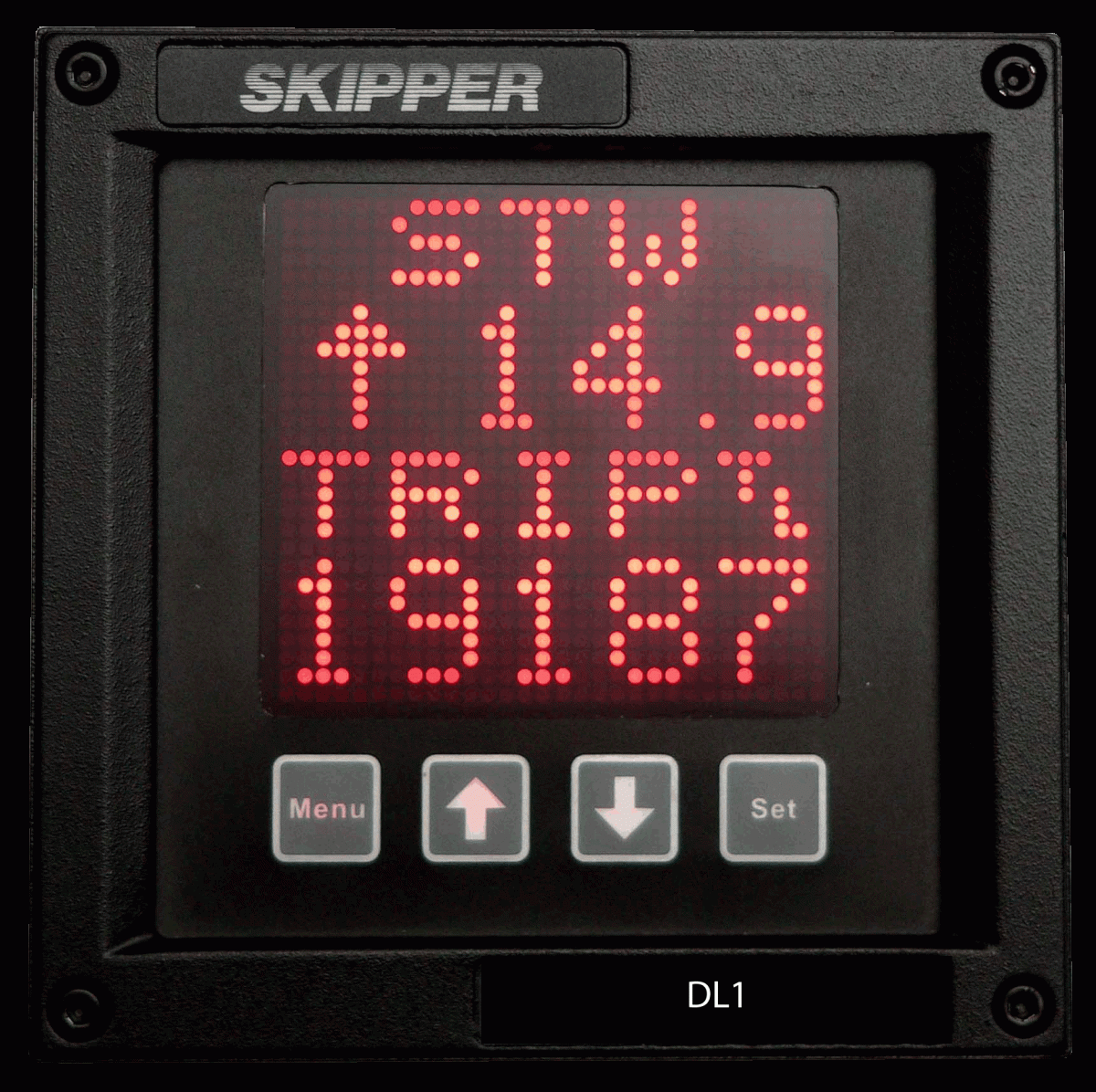

Skipper DL1 Single Axis Speed Log
The SKIPPER DL1 is a Single Axis Speed Log, working on the doppler principle, providing longitudinal ship’s speed (STW) and distance relative to sea water. The SKIPPER DL1 gives accurate navigation parameters, measured as they happen, and presented in a logical, user friendly way.
Key Features
- IMO Wheelmarked with MED-B
- Doppler water speed log in single axis (STW)
- Compact Display 144x144 mm
- Sea Temperature readout from sensor
- NMEA 0183 and Analog pulses output
- 3 userfriendly programmable displays and integrated menus
- RMRS and CCS available on request
- Fully automatic settings
Specifications
- Number of Axis: 1
- Speed range longitudinal: +/- 50 knots
- Water track (from): 3 meter
- Temperature accuracy error: <1°C
- Power Supply: AC:115-230 V 50/60 Hz, DC: 20-32 V, auto switch over
- Power Consumption: Max 30 W
- Display: 28x30 pixle alphanumeric LEDs (red) with dimming
- Mounting dimensions display: 124x124 mm. Bracket or panel mounting, Front plate: 144x144 mm, Depth: 59 mm, Weight: 1 kgs
- Standard cable length for sensor: 40 m
- Mounting options: 60 mm Sea Valve for single bottom, 60 mm Sea Valve for double bottom, Steel Tank, Aluminium tank, 100 mm Sea Valve for single bottom, 100 mm Sea Valve for double bottom, PCSV60 retrofit, Simrad NL retrofit, Sagem retrofit, Naviknot 5005 retrofit
- Speed alarms: High and low speed limits, Power failure, Sensor failure
- Outputs: 2xNMEA 0183, 2xcontact closure (pulse), Alarm (relay)
- Inputs: 1xNMEA 0183 (OPTO isolated), External dimming (pulse)
- NMEA Outputs: Speed: VBW and VHW, Distance: VLW, Others: MTW (Temperature)
- Classification: IMO Wheelmarked, CCS on request, RMRS on request, MED-B
One full system consists of:
Compact Display options:
- CD401D1-SB Single axis display
Sensor options:
- DL1SG-SA for 60 mm sea valve
- DL1SDB-SA for 100 mm sea valve
- DL1ST-SA for Steel tank
- DL1STA-SA for Aluminium tank
- DL1SN-SA for Simrad NL retrofit
- DL1SS-SA for Sagem retrofit
- DL1SV-SA for Naviknot 5005 retrofit
Electronic Unit:
Bottom housings:

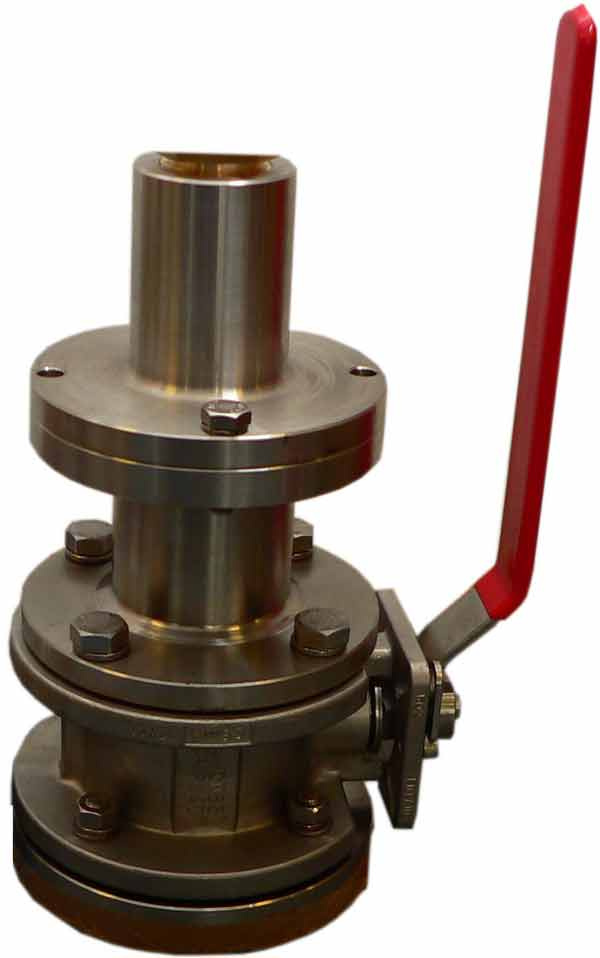

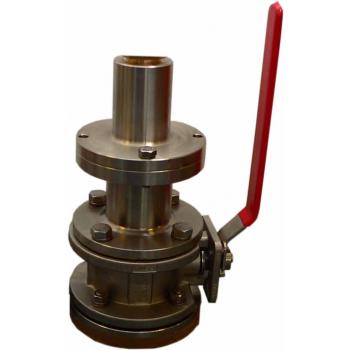

- SB-60-SA Sea Valve for double bottom
- DB-60-SA Sea Valve for single bottom
- ETNSTCL Steel Tank
- ETNALC Aluminium Tank
