Simrad 120kHz ES120-7C

Recommended For:

1. Commercial Fishing

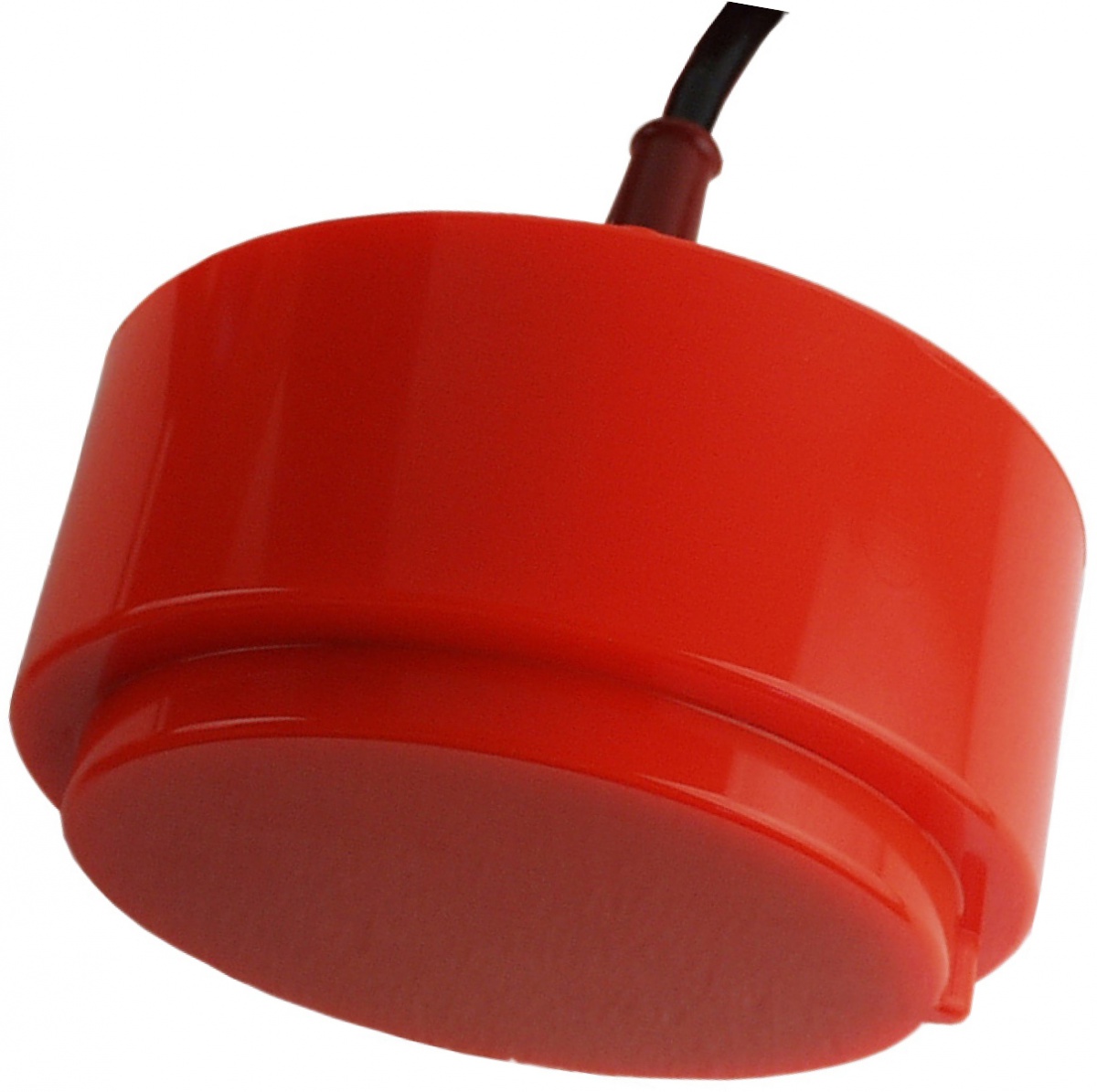

Simrad 120kHz ES120-7C

The Simrad ES120-7C is a 120 kHz split-beam composite transducer with a large bandwidth. This provides a fine range resolution, which is important for single fish detection and target strength measurement. The transducer has four quadrants.

Applications:

• Fishery echo sounders

Key technical specifications:

• Frequency: 120 kHz
• Circular beamwidth: 7 degrees
• Maximum input pulse power: 1000 W
• Maximum continuous input power: 10 W
• Maximum transducer depth: 100 m
• Cable length: 20 m
• Weight without cable: 2.4 kg
• Diameter: 180 mm
• Height, body: 85.2 mm

(Specifications valid when all four quadrants are wired in parallel.)
