Simrad 120kHz ES120-7CD

Recommended For:

1. Scientific Research

Simrad 120kHz ES120-7CD

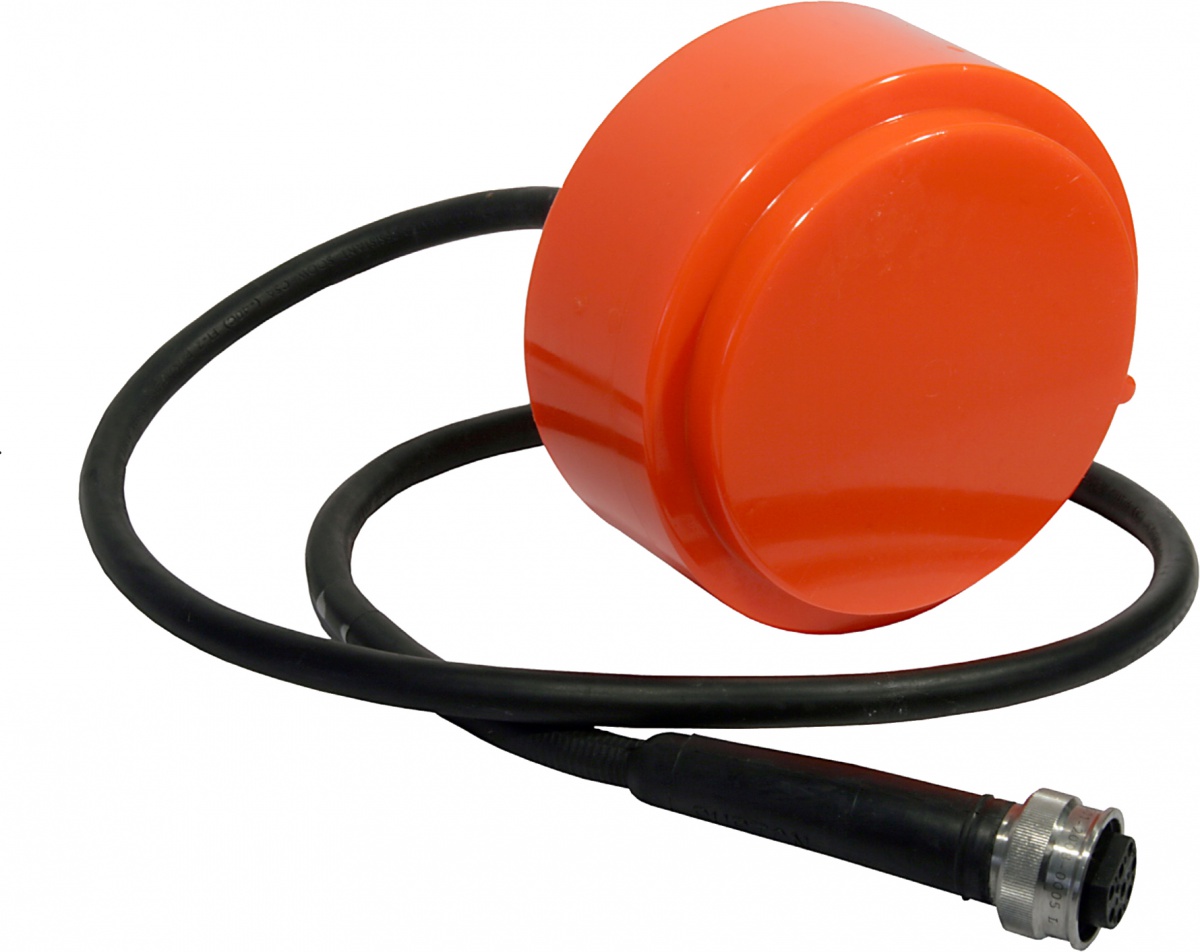

The Simrad ES120-7CD is a 120 kHz split-beam composite transducer with a large bandwidth. This provides a fine range resolution, which is important for single fish detection and target strength measurement. The transducer has four quadrants. The ES120-7CD has been designed to withstand a large water pressure. It is therefore well suited for towed bodies.

Typical applications

• Scientific echo sounders

Key technical specifications

• Frequency: 120 kHz
• Circular beamwidth: 7°
• Maximum input pulse power: 500 W
• Maximum continuous input power: 5 W
• Maximum transducer depth: 1500 m
• Cable length: 1,5 m
• Weight in air: 4,5 kg

(The specifications are valid when all four quadrants are wired in parallel)
