Simrad 120kHz ES120-7DD

Recommended For:

1. Commercial Fishing

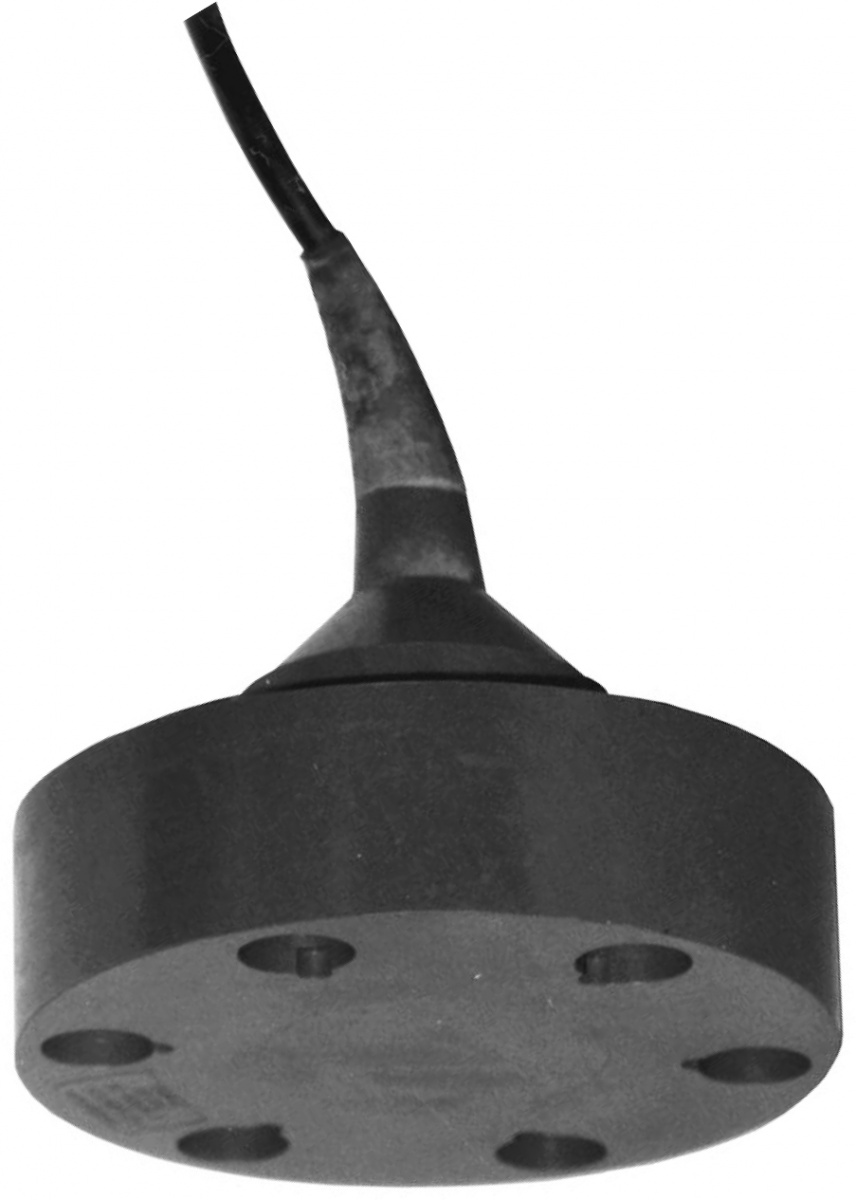

Simrad 120kHz ES120-7DD

The ES 120-7DD is a split-beam transducer incorporating 76 piezo-ceramic elements distributed over four quadrants. It is designed for deep water installations with a maximum depth of 1500 m.

Applications:

• Fishery echo sounders

Key technical specifications:

• Frequency: 120 kHz
• Circular beamwidth: 7 degrees
• Maximum input pulse power: 1000 W
• Maximum continuous input power: 10 W
• Maximum transducer depth: 1500 m
• Cable length: 0.5 m with undewater connector
• Weight without cable: 6 kg
• Diameter: 195 mm
• Height, body: 120 mm

(Specifications valid when all four quadrants are wired in parallel.)
