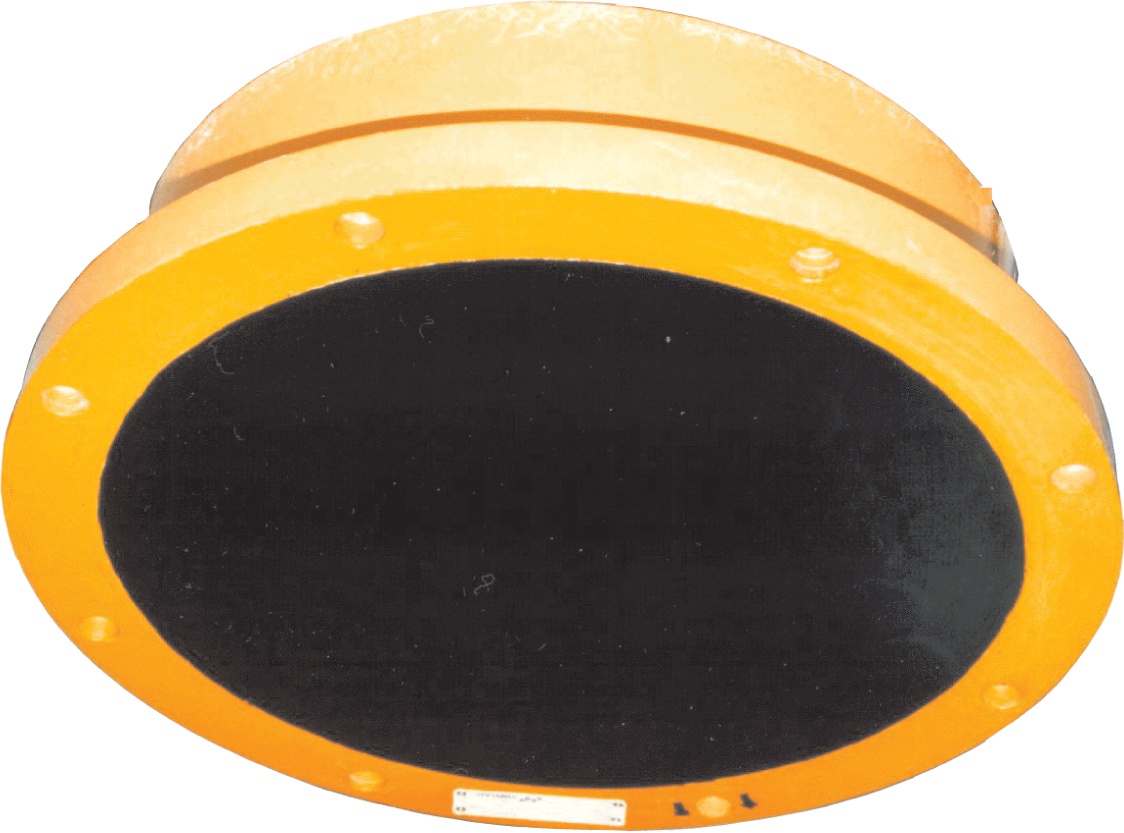

Simrad 18kHz ES18
The Simrad ES18 is a split-beam transducer incorporating 44 tonpilz elements distributed over four quadrants. It is ideal for use in ocean depth measurement to a maximum depth of 7000 m.
Applications:
- Fishery echo sounders
- Fishery Research echo sounders
Key technical specifications:
- Frequency: 18 kHz
- Circular beamwidth: 11 ±2 degrees
- Maximum input pulse power: 2000 W
- Maximum continuous input power: 100 W
- Maximum transducer depth: 50 m
- Cable length: 20 m
- Weight with cable: 85 kg
- Diameter: 625 mm
- Height: 175 mm
