Simrad 200kHz ES200-7C

Recommended For:

1. Scientific Research
2. Commercial Fishing

Simrad 200kHz ES200-7C

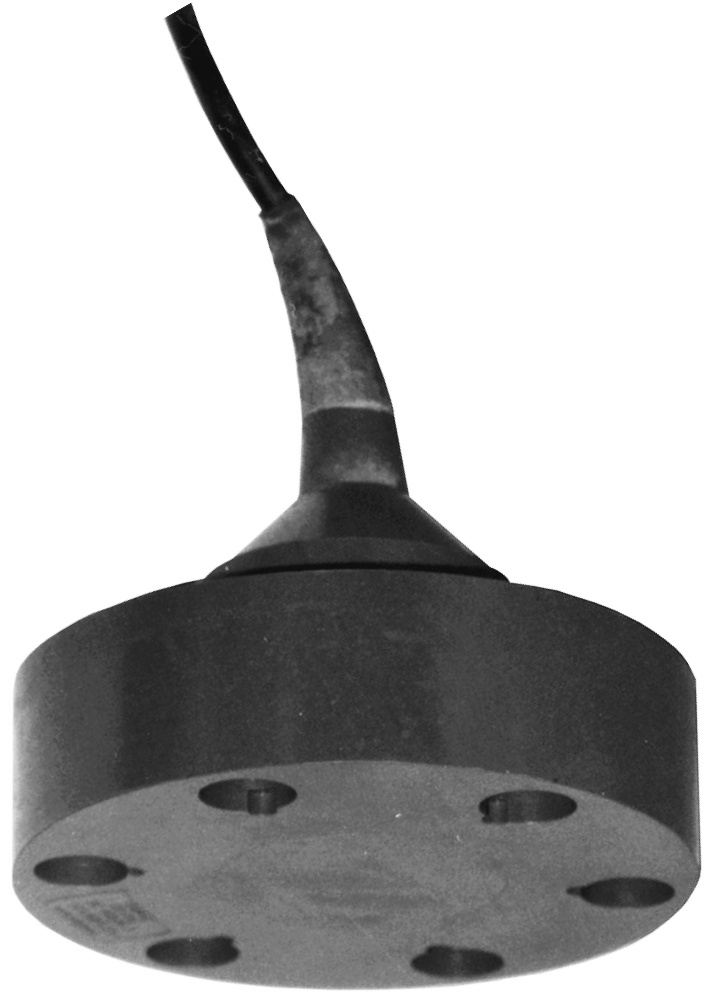

The Simrad ES200-7C is a split-beam composite transducer with a large bandwidth. This provides a fine range resolution, which is important for single fish detection and target strength measurement. The transducer has four quadrants.

Applications:

• Fishery echo sounders
• Fishery Research echo sounders

Key technical specifications:

• Frequency: 200 kHz
• Circular beamwidth: 7 degrees
• Maximum pulse power input: 1000 W
• Maximum continuous input power: 10 W
• Maximum transducer depth: 20 m
• Cable length: 20 m
• Weight without cable: 1.1 kg
• Diameter: 120 mm
• Height, body: 75.2 mm

*(Specifications valid when all four quadrants are wired in parallel.)
