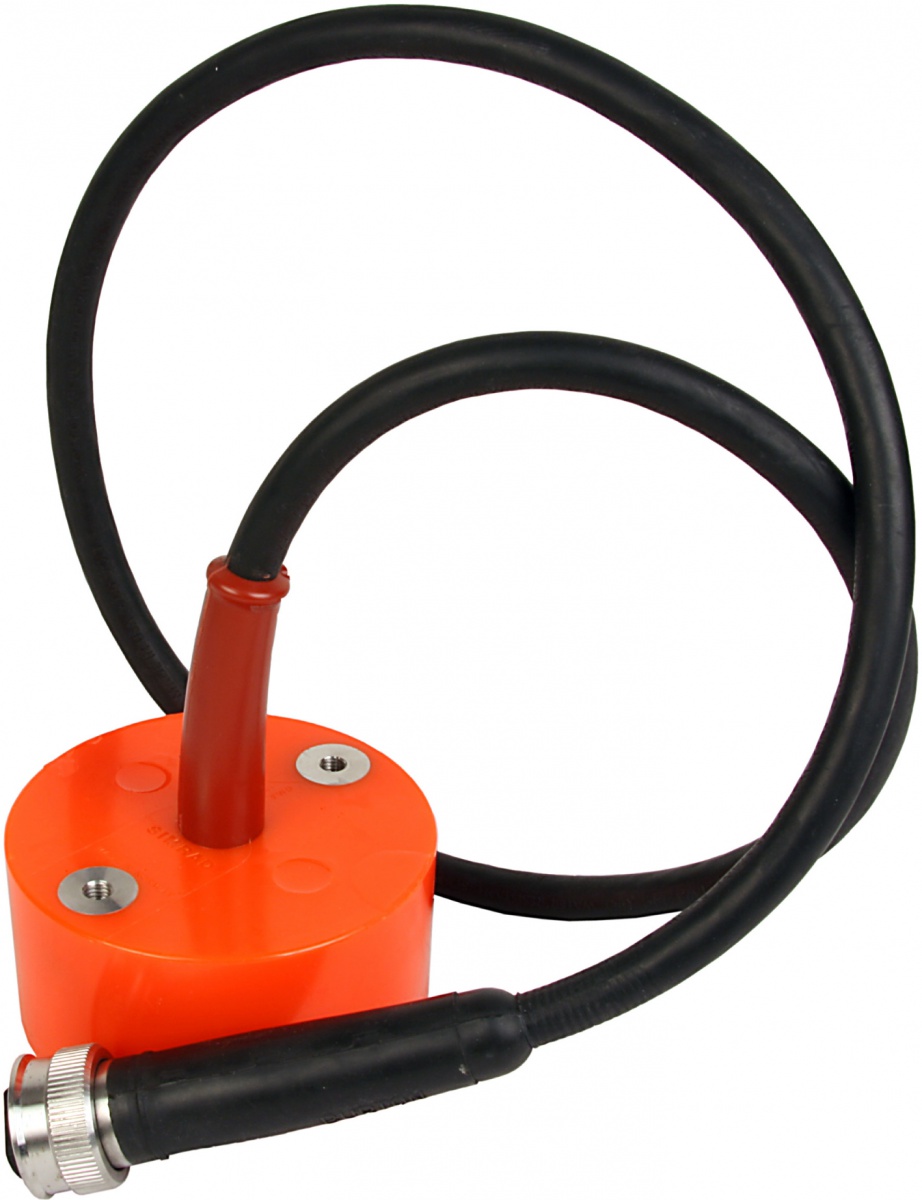

Simrad 200kHz ES200-7CD

Recommended For:

1. Scientific Research

Simrad 200kHz ES200-7CD

The Simrad ES200-7CD is a split-beam composite transducer with a large bandwidth. This provides a fine range resolution, which is important for single fish detection and target strength measurements. The transducer has four quadrants. The ES200-7CD has been design to withstand a large water pressure, and is therefore well suited for towed bodies.

Typical applications

• Scientific echo sounders

Key technical specifications

• Frequency: 200 kHz
• Circular beamwidth: 7°
• Maximum input pulse power: 300 W
• Maximum continuous input power: 3 W
• Maximum transducer depth: 1500 m
• Cable length: 1,5 m
• Weight without cable: 2 kg

Physical dimensions:

• Diameter: 120 mm
• Height, body: 75.2 mm

Specifications valid when all four quadrants are wired in parallel.
