Simrad 70kHz ES70-11

Recommended For:

1. Commercial Fishing

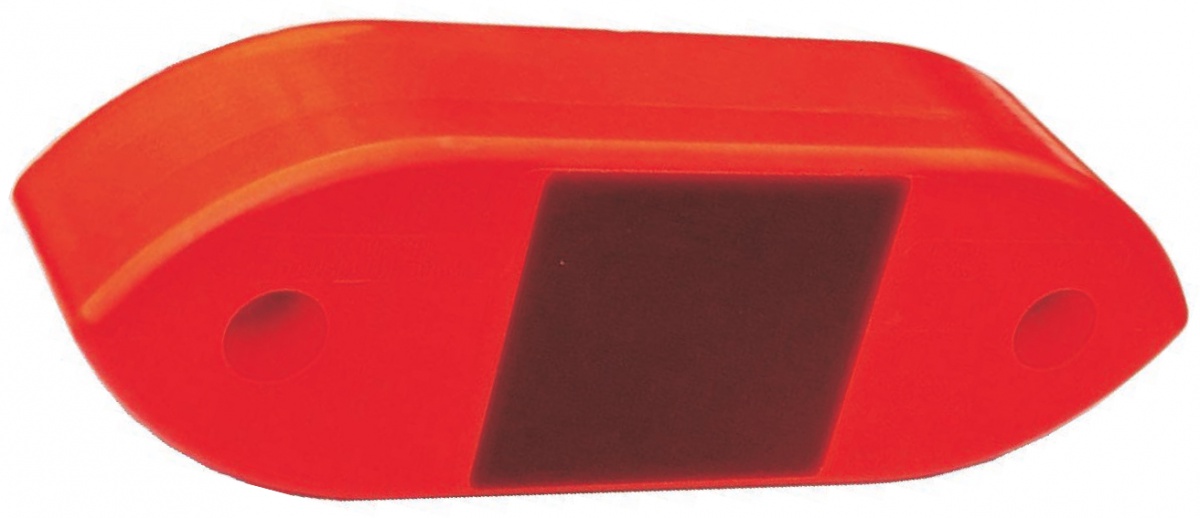

Simrad 70kHz ES70-11

The ES70-11 is a split-beam transducer in a streamlined housing. It can be mounted outside the vessel hull or on a towed foil. The transducer has 36 piezoceramic elements arranged in four quadrants. It can also be used as a single-beam transducer by connecting the four quadrants two and two, first in parallel and then in series.

Applications:

• Fishery echo sounders

Key technical specifications:

• Frequency: 70 kHz
• Circular beamwidth: 11 ±1 degrees
• Maximum input pulse power: 800 W
• Maximum continuous input power: 40 W
• Maximum transducer depth: 150 m
• Cable length: 20 m
• Weight without cable: 12 kg
• Length: 400 mm
• Width: 130 mm
• Height, body: 85 mm

(Specifications valid when the transducer is wired as a single beam unit.)
