eXcel@Sea VSAT v85NX

The World’s First Future Proof Ku- to Ka-band Convertible Sub-1m VSAT

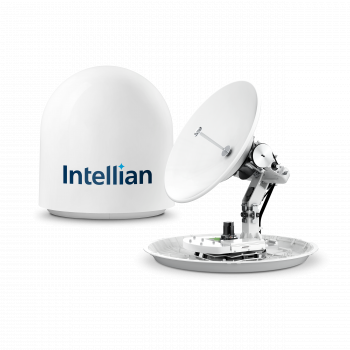

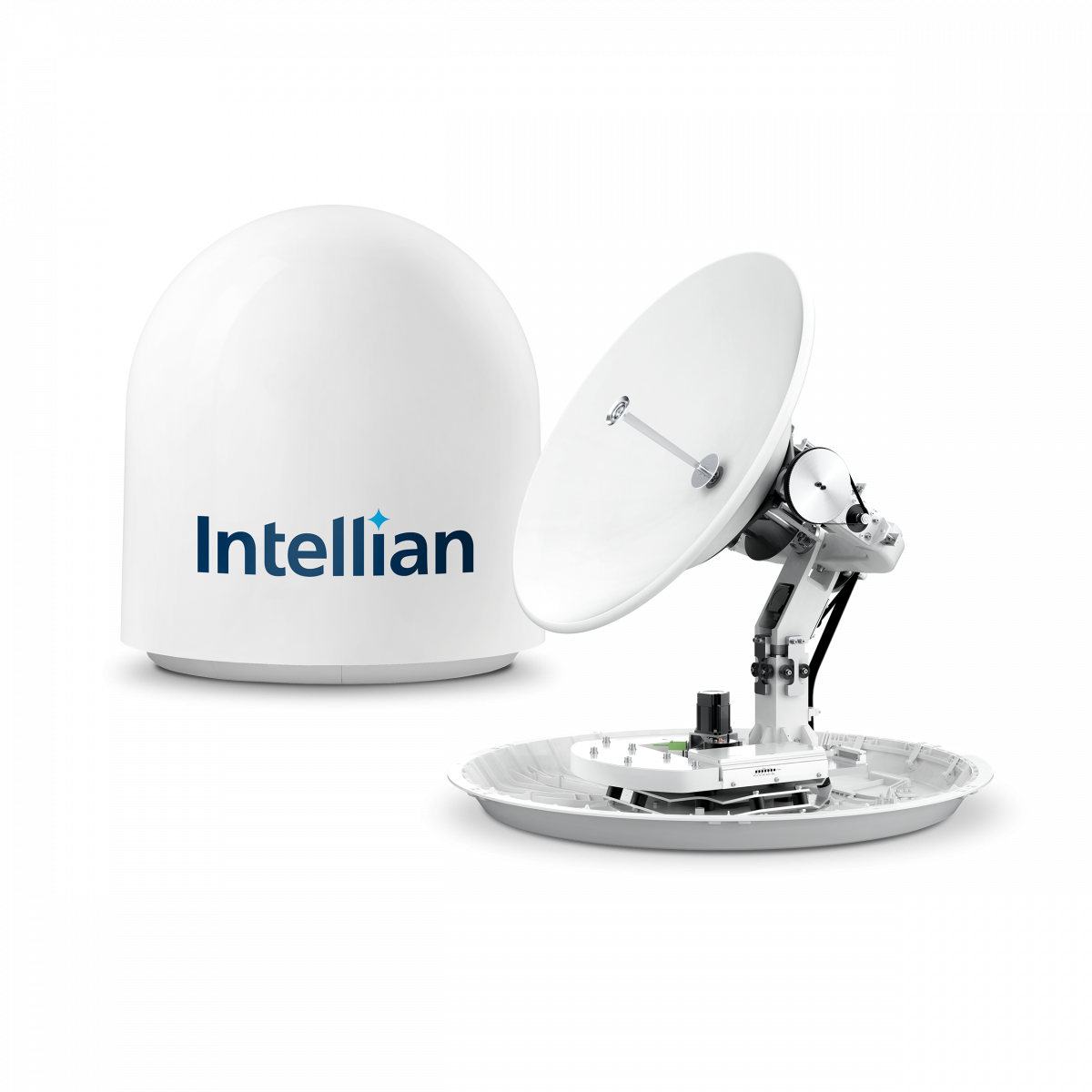

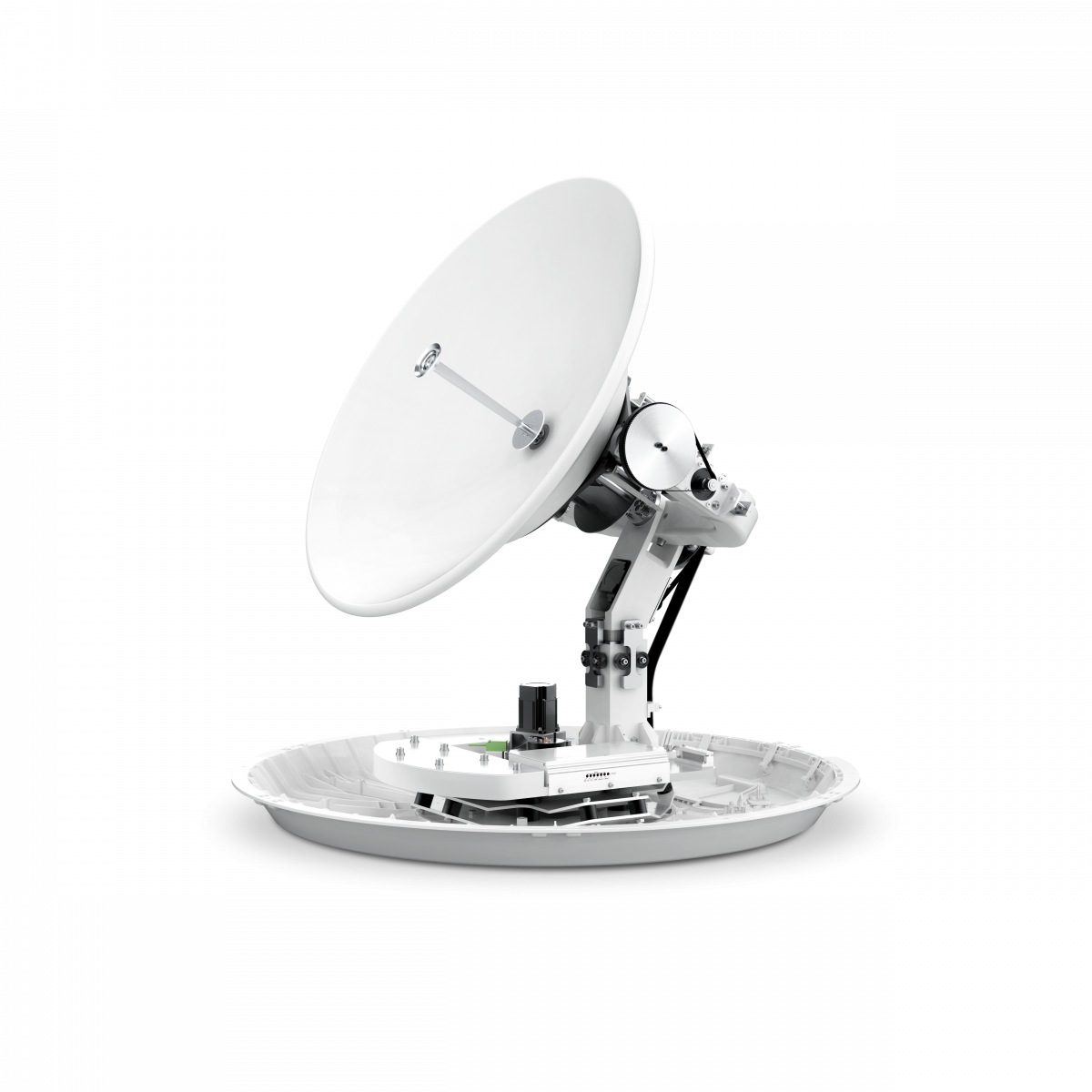

Intellian v85NX is a Ku- to Ka-band convertible maritime VSAT antenna system with a 85cm diameter reflector. The compact 85cm antenna’s smaller footprint allows installation on smaller vessels yet still allows the system to operate on a 1-meter designed network.

Quick Ku- to Ka-band Conversion

The v85NX can be easily converted from Ku- to Ka-band operation by changing the center-mounted RF assembly.

Higher RF Performance

The system comes standard with 8W BUC and can be upgraded to a high power BUC or tranciver system enabling higher throughput.

Quick and Easy Deployment

Single cable design and no internal shipping brackets reduce installation time and cost.

Embedded Dual Antenna Mediator

Intellian’s NX series fully supports dual antenna operations, without an additional mediator or RF splitters.

Future Proof System

• Hardware designed to track NGSO satellites
• No additional Mediator needed to track NGSO satellites
• Ku- to Ka-band convertible
• 2.5GHz Wideband Ka-band Radome and Reflector ready

Simplified Installation

• No need to open radome during antenna installation onboard
• Mounting from outside of radome
• Pre-hung lifting strap supplied as standard with all NX-series
• Radome removal not required during install with single cable external termination and dynamic motor braking
